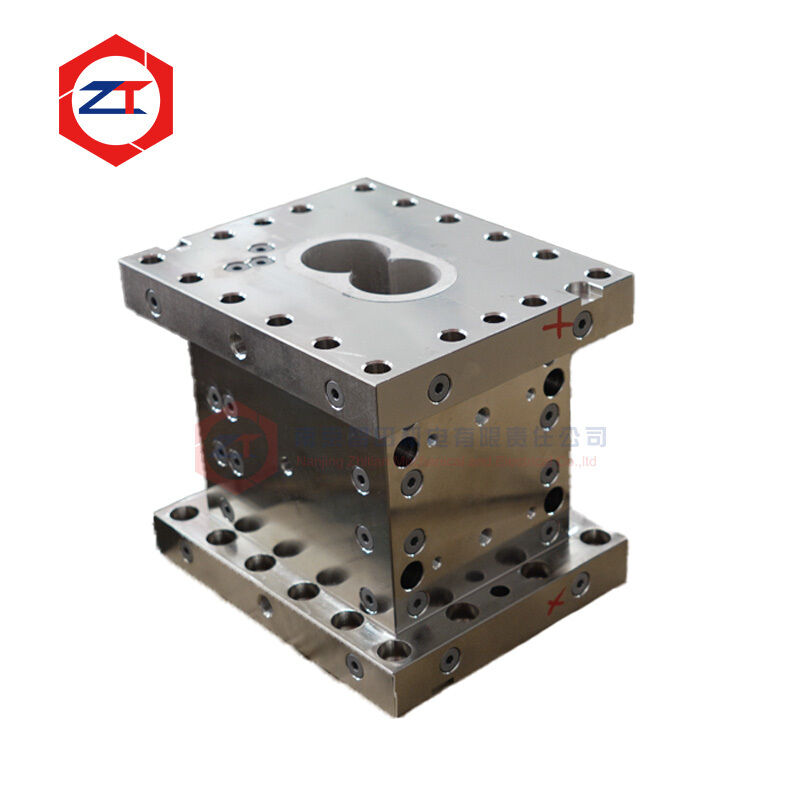

Twin Screw Extruder Barrel for Filled and Flame-Retardant Compounds

This twin screw extruder barrel for plastic compounding is designed for engineering plastics and modified polymer formulations where abrasive fillers and chemically aggressive additives can attack the barrel bore at the same time.

Typical applications include glass-fiber-reinforced plastics, mineral-filled compounds, flame-retardant formulations and high-performance engineering polymers.

Instead of selecting the barrel only by hardness, the inner-bore material can be matched to the actual combination of abrasion, corrosion, temperature and process load.

This helps reduce problems such as:

• Rapid bore enlargement in high-filler processing
• Pitting combined with abrasive wear
• Unstable screw-to-barrel clearance
• Reduced output and pressure stability
• Localized wear around intensive mixing zones
• Frequent replacement of high-load barrel sections

Engineering-plastic compounding often combines several aggressive ingredients in one formulation.

Examples include:

• Glass fiber
• Calcium carbonate
• Talc
• Mica
• Mineral flame retardants
• Pigments
• Reactive modifiers
• Corrosive flame-retardant additives

Glass fiber and mineral particles create mechanical abrasion as they pass between the rotating screw elements and barrel bore.

At the same time, some additives or decomposition products may chemically attack the working surface.

When these two mechanisms occur together, corrosion can weaken the surface while abrasive particles continuously remove the damaged layer.

The barrel may therefore wear much faster than expected from either mechanism alone.

A single barrel material is not suitable for every engineering-plastic compound.

Material selection should consider:

• Polymer type
• Glass-fiber percentage
• Mineral-filler percentage
• Flame-retardant system
• Processing temperature
• Screw speed
• Shear intensity
• Existing wear pattern

38CrMoAlA with nitriding can be used for general compounding applications where abrasion and corrosion are relatively moderate.

It offers a practical balance between performance and cost but may not provide sufficient service life in heavily filled formulations.

For high glass-fiber or mineral-filled compounds, tool-steel and bimetallic liner systems can provide greater resistance to abrasive wear.

They may be applied particularly in sections exposed to intensive mixing or high pressure.

Where corrosion accompanies abrasive wear, nickel-based alloy systems can provide additional chemical resistance.

An alloy lined twin screw barrel may combine a structural outer barrel with a protected inner working surface, allowing the bore material to be selected specifically for the processed compound.

For more demanding operating conditions, laser cladding or an integral alloy sleeve can provide upgraded inner-bore protection.

Laser cladding forms a metallurgical bond between the wear-resistant layer and substrate, while an integral alloy sleeve provides a continuous protected bore.

The appropriate solution should be selected according to the actual failure mechanism and expected service life.

Wear is rarely equal across the complete barrel assembly.

Higher wear often appears near:

• Glass-fiber feeding positions
• Intensive kneading zones
• High mineral-filler sections
• Reactive mixing areas
• Pressure-building zones
• Sections operating at high temperature

It is therefore not always necessary to use the same high-cost material throughout the complete barrel set.

For example:

• Standard material can be retained in low-load conveying sections
• Wear-resistant liners can be used in high-shear zones
• Corrosion-resistant alloys can be applied where reactive additives are present

This zone-specific approach concentrates material investment where the failure risk is highest.

As the barrel bore wears, the clearance between the screw elements and barrel increases.

Excessive clearance may lead to:

• Material backflow
• Reduced conveying efficiency
• Lower output
• Unstable melt pressure
• Changes in shear and mixing behavior
• Greater variation in residence time

For this reason, barrel wear should be evaluated together with screw-element wear.

Installing new screw elements in an excessively worn barrel may not fully restore the original extrusion performance.

During replacement manufacturing, critical dimensions include:

• Inner-bore geometry
• Center distance
• Barrel length
• Connection surfaces
• Positioning dimensions
• Bolt-hole locations
• Alignment with adjacent barrel sections

The barrel can be manufactured according to:

• Original technical drawings
• Used barrel samples
• Measured dimensions
• Existing machine interfaces
• Process and formulation information

Customizable features include:

• Bore dimensions
• Center distance
• Overall length
• Connection surfaces
• Feeding and venting openings
• Side-feeder interfaces
• Heating holes
• Cooling channels
• Temperature sensor holes
• Liner material
• Inner-bore protection

When a worn barrel is supplied as a sample, the damaged dimensions must first be identified and corrected rather than copied directly.

Inspection can include:

• Inner-bore dimensions
• Center distance
• Overall length
• Connection-face accuracy
• Positioning dimensions
• Bolt-hole locations
• Port dimensions
• Inner-bore surface condition
• Cooling-channel sealing
• Material and treatment verification

Dimensional records can be retained for future repeat orders and replacement traceability.

Please provide:

1. Extruder drawing or used barrel sample
2. Processed polymer
3. Glass-fiber percentage
4. Mineral-filler type and percentage
5. Flame-retardant or reactive additive information
6. Processing temperature
7. Existing barrel material
8. Current service life
9. Photographs of the worn bore
10. Position of the most severely worn section
11. Required service-life target
12. Required quantity

This information helps determine whether the main failure mechanism is abrasion, corrosion or a combination of both.

The appropriate material depends on glass-fiber percentage, screw configuration, throughput and operating conditions. Tool-steel, bimetallic or other wear-resistant liner systems are generally considered for severe abrasive service.

Not all flame-retardant formulations have the same corrosiveness. Material selection should be based on the specific flame-retardant system, temperature and observed damage.

Yes. Bimetallic liners, nickel-based alloys, laser-clad layers and other alloy systems can be selected to address both mechanisms.

No. Different materials can be used in different process zones according to actual wear and corrosion conditions.

Send us your formulation, filler percentage, existing barrel material and photographs of the worn bore.

We can help evaluate:

• Whether the main problem is abrasion, corrosion or combined wear
• Which barrel sections require upgraded protection
• Whether tool steel, bimetallic alloy, nickel-based alloy or another solution is more suitable
• Whether the existing screw-to-barrel clearance should be checked
• Which dimensions must be confirmed before manufacturing
