This alloy lined twin screw barrel is designed for compounding applications where a standard barrel material may not provide the required balance of wear resistance, corrosion resistance and service life.
Instead of using the same material throughout every application, the working bore can be configured with an alloy liner selected according to the actual polymer, filler, additive and operating condition.
This approach is particularly useful when different extrusion processes create very different wear mechanisms.
It helps address problems such as:
- Rapid bore wear caused by abrasive fillers
- Corrosion from aggressive additives or formulations
- Combined wear and corrosion
- Localized wear in specific barrel sections
- Frequent replacement of high-wear barrel zones
- Excessive material cost from over-specifying every barrel section
Key Specifications
| Item |
Available Configuration |
| Product type |
Alloy lined twin screw extruder barrel |
| Main feature |
Application-specific alloy liner selection |
| Main applications |
Polymer compounding and demanding extrusion processes |
| Protection focus |
Wear, corrosion or combined wear-corrosion |
| Barrel types |
Closed, feeding, venting, side-feeding and customized sections |
| Liner options |
Nickel-based, wear-resistant or customized alloy systems |
| Manufacturing basis |
Drawing, sample or measured dimensions |
| Temperature control |
Customized heating and cooling channels |
| Inspection |
Bore, center distance, interfaces and liner condition |
| Main purpose |
Match barrel bore protection to actual process conditions |
Why One Barrel Material Does Not Fit Every Process
Twin screw extrusion covers a wide range of materials and operating conditions.
A barrel used for unfilled polymer may experience relatively moderate wear, while another barrel processing high levels of glass fiber, calcium carbonate, talc or other fillers may be exposed to strong abrasive action.
Corrosive additives, reactive formulations and certain chemical environments introduce another type of damage.
As a result, the best barrel material depends on the dominant failure mechanism.
The main conditions should first be identified:
- Abrasive wear
- Chemical corrosion
- Combined abrasion and corrosion
- High local pressure
- Continuous operating load
- Elevated processing temperature
- Severe wear concentrated in one process zone
The liner should then be selected to address the actual problem rather than simply choosing the hardest available material.
Select the Liner According to the Process
For an application-specific extruder barrel, material selection begins with the formulation.
Abrasive Mineral-Filled Compounds
Calcium carbonate, talc, mica and other mineral fillers can gradually wear the barrel bore.
In these applications, the main objective is usually to maintain bore geometry and screw-to-barrel clearance under continuous abrasive contact.
A wear-resistant alloy system may therefore be appropriate.
Fiber-Reinforced Engineering Plastics
Glass fiber and similar reinforcement materials can create severe wear, particularly around feeding, mixing and pressure-building sections.
These zones may require stronger wear protection than standard conveying sections.
Corrosive or Reactive Formulations
Some additives and process conditions cause pitting or chemical attack on the barrel surface.
In these applications, corrosion resistance should be considered together with mechanical wear.
Nickel-based alloy systems can be evaluated where corrosion resistance is a major requirement.
Combined Wear and Corrosion
Some applications expose the barrel to both abrasive particles and corrosive chemistry.
In this case, selecting only a high-hardness material may not solve the complete problem.
A balanced alloy system should be considered according to the actual material and operating temperature.
Use Higher-Performance Materials Where They Are Needed
A segmented twin screw extruder does not experience the same wear level in every barrel section.
More severe conditions may appear around:
- Main feeding zones
- Filler introduction sections
- Side-feeding areas
- Intensive mixing zones
- High-pressure sections
- Venting transitions
- Downstream pressure-building zones
For this reason, it may not be necessary to use the same premium liner material throughout the complete barrel set.
Higher-performance alloy protection can be concentrated in the sections that experience the greatest wear or corrosion.
Less demanding positions can use a more economical material solution.
This creates a more practical balance between service life and replacement cost.
Maintain Screw-to-Barrel Working Clearance
The purpose of an alloy liner is not only to resist surface damage.
It also helps maintain the working geometry of the barrel bore.
As the bore wears, the clearance between screw elements and barrel increases.
Excessive clearance may lead to:
- Increased material backflow
- Reduced conveying efficiency
- Lower pressure-building capability
- Changes in mixing behavior
- Process instability
- Increased wear of the screw-barrel system
For replacement projects, both the barrel condition and screw-element condition should therefore be evaluated.
Installing a new high-performance barrel around severely worn screw elements may not fully restore the original working clearance.
Custom Replacement for Existing Extruders
The alloy lined twin screw barrel can be manufactured according to:
- Original technical drawings
- Existing barrel samples
- Measured dimensions
- Machine interface information
- Processing requirements
Customizable features include:
- Bore geometry
- Center distance
- Barrel length
- Alloy liner material
- Liner thickness or structure
- Connection faces
- Positioning features
- Bolt-hole layout
- Feeding ports
- Venting ports
- Side-feeder interfaces
- Heating holes
- Cooling channels
- Sensor locations
For worn samples, the original design dimensions should be distinguished from dimensions changed through service wear.

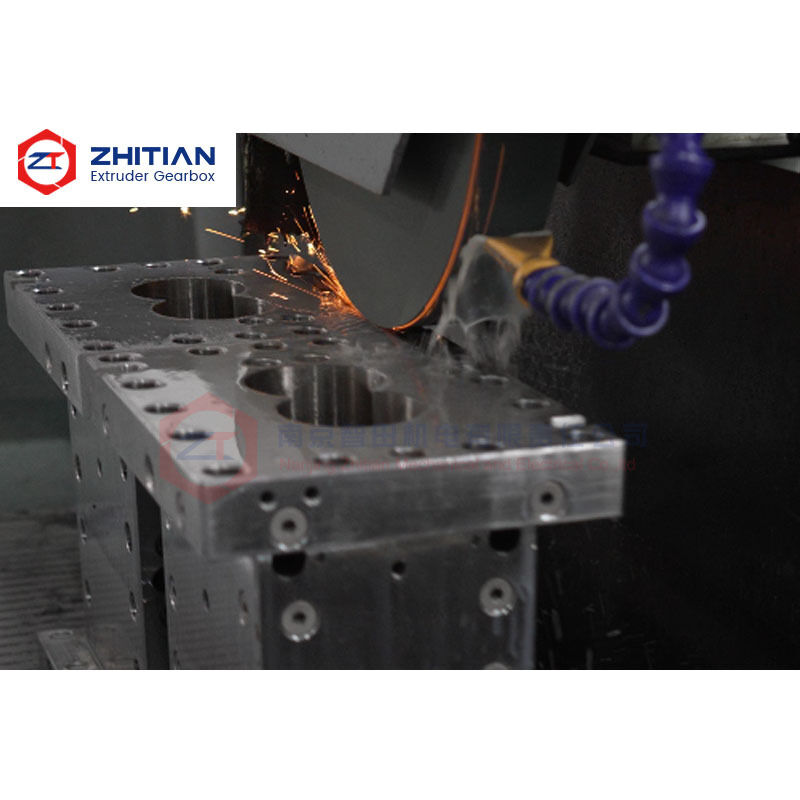

Manufacturing and Inspection
Critical inspection can include:
- Inner-bore dimensions
- Center distance
- Bore geometry
- Parallelism
- Barrel length
- Connection-face accuracy
- Positioning dimensions
- Port locations
- Cooling-channel sealing
- Liner surface condition
- Material verification
Inspection records can also be retained for repeat replacement orders.
This is particularly useful for customers operating multiple extrusion lines with the same or similar barrel configurations.
Information Required for Liner Selection
For technical evaluation, please provide:
- Extruder information
- Barrel drawing or sample
- Processed polymer
- Filler or reinforcement type
- Filler percentage
- Additives or corrosive components
- Processing temperature
- Screw speed
- Approximate throughput
- Existing barrel material
- Current barrel service life
- Wear or corrosion photographs
- Location of the most severe damage
- Required quantity
The most useful information is often the actual failure condition of the current barrel.
Wear pattern, corrosion position and service life can help determine whether the existing material is correctly matched to the application.
Frequently Asked Questions
Is the hardest alloy always the best barrel liner?
No. Material selection should consider abrasion, corrosion, toughness, temperature and actual process conditions. Maximum hardness alone does not determine suitability.
Do all barrel sections need the same alloy liner?
Not necessarily. Different sections may experience different levels of wear and corrosion. Higher-performance materials can be concentrated in critical zones.
Can the liner material be upgraded when replacing an existing barrel?
Yes. If the original barrel is wearing too quickly, the working surface material can be reconsidered while maintaining the required replacement dimensions.
Should the screw elements also be inspected?
Yes. Screw and barrel wear together determine the actual working clearance. Evaluating both components provides a better basis for replacement decisions.
Request an Application-Specific Barrel Review
Send us your barrel drawing, process material and current wear or corrosion condition.
We can help evaluate:
- What is causing the current barrel failure
- Whether wear resistance, corrosion resistance or both should be prioritized
- Which barrel sections require upgraded protection
- Whether the existing screw elements should also be inspected
- Which dimensions must be confirmed before manufacturing
