Nanjing Zhitian Mechanical And Electrical Co., Ltd.
About Us
Your Professional & Reliable Partner.
Zhitian specializes in the production of extruder parts, with 20 years of experience in research and manufacturing. We professionally produce components such as gearboxes, barrels, and screw elements. Additionally, we offer repair services and custom design based on samples provided by our clients.Zhitian is also dedicated to the development of nickel-based alloy materials. Utilizing advanced techniques like laser cladding and cold isostatic pressing, we apply these materials to components such ...
Learn More

0

Year Established:

0

Million+
Employees

0

Million+
Annual Sales:
China Nanjing Zhitian Mechanical And Electrical Co., Ltd. High quality
Trust Seal, Credit Check, RoSH and Supplier Capability Assessment. company has strictly quality control system and professional test lab.
China Nanjing Zhitian Mechanical And Electrical Co., Ltd. DEVELOPMENT
Internal professional design team and advanced machinery workshop. We can cooperate to develop the products you need.
China Nanjing Zhitian Mechanical And Electrical Co., Ltd. MANUFACTURING
Advanced automatic machines, strictly process control system. We can manufacture all the Electrical terminals beyond your demand.
China Nanjing Zhitian Mechanical And Electrical Co., Ltd. 100% SERVICE
Bulk and customized small packaging, FOB, CIF, DDU and DDP. Let us help you find the best solution for all your concerns.

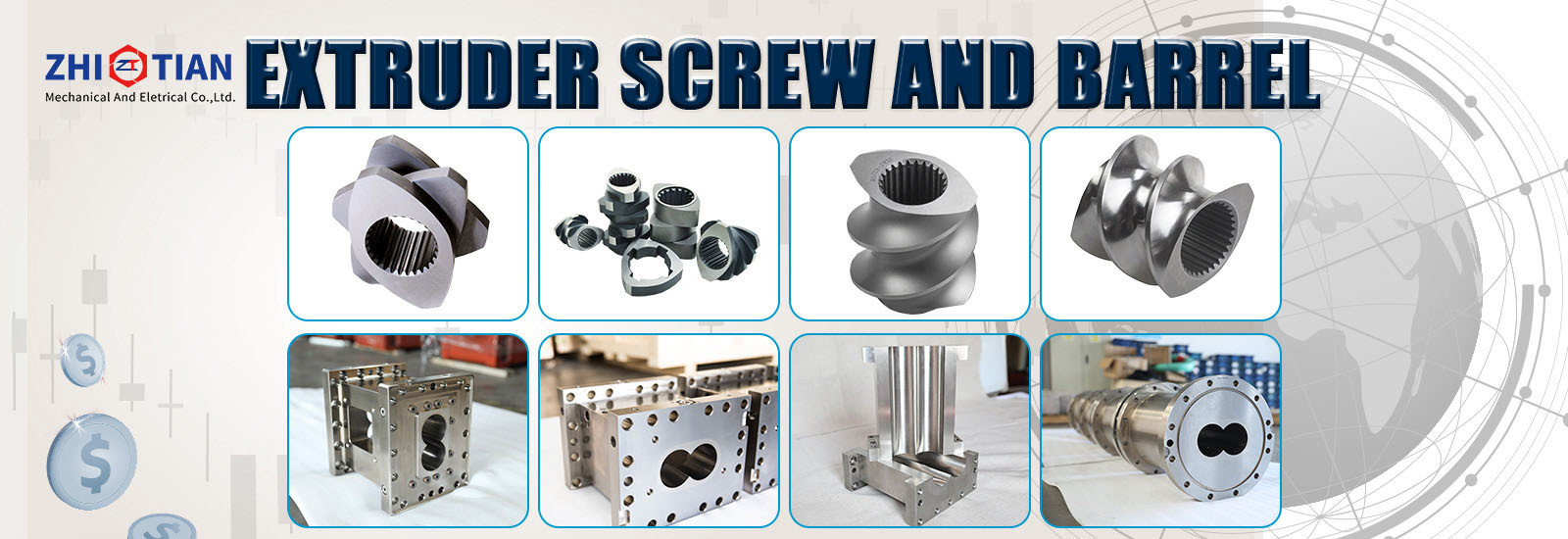

quality Twin Screw Extruder Parts & Extruder Screws And Barrels manufacturer

Find Products That Better Meet Your Requirements.
Cases & News
The Latest Hot Spots
What Are Twin-Screw Extruder Screw Elements? A Comprehensive Guide to Core Structures and Functions
What Are Twin-Screw Extruder Screw Elements? A Comprehensive Guide to Core Structures and Functions​ Twin-screw extruders are the ​heart of polymer material processing, and their performance hinges on the design and selection of ​screw elements. This article delves into the core structures, functional classifications, and material properties of screw elements, equipping you with the technical insights to optimize production processes. ​1. Definition and Classification: The "Functional Modules" of Screw Elements​ Screw elements are the core moving components of twin-screw extruders, enabling material conveying, plastification, mixing, and venting through modular configurations. Key types include: ​Conveying Elements​ (Forward/Reverse) ​Forward Conveying Blocks: Wide-flight design for axial material transport, ensuring basic plastification. ​Reverse Conveying Blocks: Narrow-flight or reverse-thread structures to generate backpressure for enhanced mixing. ​Kneading Elements​ Angled blocks (30°/60°/90°) create high shear forces for dispersive mixing. ​Specialized Elements​ ​Venting Elements: Large-pitch threads to expand surface area for volatile removal. ​Toothed Elements: Improve distributive mixing, ideal for high-fill materials (e.g., calcium carbonate, glass fiber). ​2. Core Functions of Screw Elements: A Visual Breakdown​ ​   Conveying – The "Powerhouse" of Material Flow​ ​Forward elements​ drive material axially for continuous output. ​Reverse elements​ extend residence time via localized reflux, improving homogeneity.    Shearing – Precision Control of Plastification​ ​Narrow-flight kneading blocks​ generate high shear heat for heat-sensitive materials (e.g., PVC, TPE). ​Wide-flight elements​ reduce energy consumption for engineering plastics (e.g., PA, PC).    Mixing – The "Microscopic Magic" of Homogenization​ ​Dispersive Mixing: Kneading blocks break agglomerates (e.g., carbon black). ​Distributive Mixing: Toothed elements ensure micro-scale uniformity (e.g., masterbatch dispersion). ​   Venting – Purification Through Volatile Removal​ ​Multi-stage venting​ with reverse elements removes moisture and monomers (e.g., PET processing). ​3. Material Science: Combating Wear and Corrosion​ Screw element longevity depends on advanced materials: ​Nitrided Steel​ Ion nitriding creates a 50-60μm hardened layer (HV1000+ hardness), tripling wear resistance. ​Powder Metallurgy Alloys​ Tungsten-cobalt alloys resist corrosion from halogenated additives (e.g., flame-retardant ABS). ​Bimetal Technology​ Chromium-molybdenum steel base with tungsten carbide coatings balances impact resistance and durability. ​4. Conclusion: The Science of Screw Element Selection​ Twin-screw extruder efficiency stems from ​strategic element combinations. Understanding their functions and materials empowers precise alignment with process needs (e.g., high-fill compounding, reactive extrusion). For ​customized screw configurations​ or ​material test reports, contact our engineering team today.​ FAQs: Twin-Screw Extruder Screw Elements Explained​ ​Q1: How do I choose between forward and reverse screw elements?​​ ​A:​​ ​Forward elements​ prioritize material transport and baseline plastification. ​Reverse elements​ (e.g., reverse conveying blocks) enhance mixing by creating backpressure. Tip: Combine both in multi-stage designs (e.g., forward → reverse → forward) for balanced efficiency. ​Q2: What maintenance practices extend screw element lifespan?​​ ​A:​​ ​Weekly: Clean residual material to prevent carbonization. ​Monthly: Measure flight clearance with a micrometer; replace if wear exceeds 0.2mm. ​Annually: Apply DLC (Diamond-Like Carbon) coatings for high-abrasion materials like glass fiber composites. ​Q3: Nitrided steel vs. powder metallurgy – which material is better?​​ ​A:​​ ​Nitrided steel: Cost-effective for general plastics (PP, PE) and low-to-medium abrasive fills (

2024

10/10

Laser Cladding of Twin screw Extruder Barrel
The Role of Laser Cladding in Enhancing Twin-Screw Extruder Barrel Performance   In twin-screw extrusion technology, ensuring the wear and corrosion resistance of the barrel's inner surface is crucial for extending the equipment's operational lifespan. The challenge lies in developing a solution that not only offers exceptional durability but also remains cost-effective when processing highly abrasive and corrosive materials. Laser cladding technology applied to the inner barrel wall has emerged as an innovative answer to this ongoing industry challenge.       Technical Challenges in Laser Cladding Application   Applying laser cladding to the inner wall of twin-screw extruder barrels involves overcoming several intricate technical challenges: Precision in Alloy Formulation: Achieving the right balance in the alloy composition is critical. The alloy must be carefully designed to provide maximum wear and corrosion resistance while ensuring strong adhesion to the barrel's base material, requiring precise adjustments and extensive experimentation. Managing the Heat-Affected Zone (HAZ): During the laser cladding process, controlling the heat-affected zone is essential to prevent damage to the base material. Improper heat management can lead to warping, reduced bonding strength, or even cracking. It’s crucial to meticulously regulate laser intensity and application speed to avoid these issues. Preventing Layer Cracking: Due to the difference in thermal expansion between the cladding material and the barrel substrate, there is a risk of stress-induced cracking. Addressing this requires fine-tuning of the process parameters and material properties to maintain a robust, crack-resistant cladding layer.   Breakthrough in Developing Nickel-Based Tungsten Carbide Coating   Our research team invested significant time and effort in developing a nickel-based tungsten carbide coating for the twin-screw extruder barrels. Throughout this journey, we undertook extensive testing and refinement of the laser cladding process. By systematically adjusting parameters such as laser power, cladding speed, and material composition, we successfully created a cladding layer with outstanding wear and corrosion resistance. This rigorous process ultimately led to the development of a high-performance nickel-based tungsten carbide coating that firmly bonds to the barrel's inner surface, delivering enhanced durability and longevity, even when exposed to harsh abrasive and corrosive conditions.       Advantages and Future Potential of Laser Cladding Technology   Laser cladding offers numerous benefits compared to traditional surface treatment methods: Superior Metallurgical Bonding: The process creates a metallurgical bond between the coating and the barrel substrate, ensuring greater strength and durability than conventional coatings, which often rely on mechanical adhesion. Enhanced Durability: The nickel-based tungsten carbide cladding provides exceptional resistance to wear and corrosion, making it ideal for applications involving highly abrasive or corrosive materials, significantly extending the operational life of the extruder barrel. Cost Efficiency: With its ability to withstand prolonged use in harsh conditions, the cladding layer reduces the frequency of maintenance and replacements, resulting in significant cost savings over time.   Conclusion   The application of laser cladding on twin-screw extruder barrel inner walls represents a major step forward in addressing the industry's challenges of wear and corrosion resistance. Our successful development of a high-performance nickel-based tungsten carbide coating demonstrates that it is possible to combine durability with cost-effectiveness, setting a new standard for equipment longevity. As we continue to explore and refine this technology, we are committed to delivering even more advanced solutions that will support the evolving needs of twin-screw extrusion processes across various industries.

2024

09/23

Applications of Co-Rotating Twin Screw Extruders in the Plastics Industry
Applications of Co-Rotating Twin Screw Extruders in the Plastics Industry   Co-rotating twin screw extruders are a cornerstone of the plastics industry, playing a crucial role in the production of a wide range of plastic materials. These machines are renowned for their exceptional ability to mix, convey, and process various polymer materials, making them indispensable in compounding, extrusion, and recycling processes. In this detailed overview, we will explore the applications of co-rotating twin screw extruders in the plastics industry, with a focus on the specific requirements of their key components: the barrel, screw elements, shafts, and gearbox.         1. Applications in the Plastics Industry   a. Polymer Compounding One of the primary applications of co-rotating twin screw extruders is polymer compounding. This process involves blending polymers with additives such as fillers, stabilizers, colorants, and reinforcing agents to produce high-performance plastic compounds. The ability of twin screw extruders to provide intensive mixing and uniform dispersion of these additives ensures that the final product has the desired mechanical, thermal, and aesthetic properties.   b. Masterbatch Production Masterbatch production is another critical application where twin screw extruders excel. Masterbatches are concentrated mixtures of pigments and/or additives encapsulated in a carrier resin. These are later diluted into a base polymer to achieve specific coloration or functional properties in the final plastic product. The precision of the mixing process in twin screw extruders ensures that the masterbatch has consistent color and performance characteristics.   c. Plastic Recycling In the recycling sector, co-rotating twin screw extruders are used to process and reconstitute plastic waste into reusable pellets. This includes the recycling of post-consumer plastics, industrial scrap, and other plastic waste streams. The extruder's ability to handle a wide variety of plastic types and contaminants, while achieving consistent output, makes it invaluable in the circular economy.   d. Production of High-Performance Plastics Twin screw extruders are also employed in the production of high-performance plastics used in automotive, aerospace, and electronics industries. These plastics often require precise mixing of polymers with advanced additives such as flame retardants, impact modifiers, and heat stabilizers. The high shear and precise control offered by twin screw extruders ensure that these complex formulations are processed effectively.     2. Key Components and Their Requirements   a. Barrel   The barrel of a co-rotating twin screw extruder is a critical component that encases the screws and provides the environment where the polymer mixing and conveying take place. The barrel's performance is crucial to the overall efficiency and effectiveness of the extrusion process.   Material Requirements: The barrel must be made from materials that offer high wear resistance and corrosion resistance, as it is subjected to intense friction and chemical interactions with the polymers and additives. Common materials include hardened steel with surface treatments such as nitriding or bimetallic linings that enhance durability.    Temperature Control: The barrel must have precise temperature control zones to ensure the polymer is maintained at the correct temperature throughout the process. This is vital for achieving the desired melting, mixing, and cooling rates necessary for producing high-quality plastic products.   Pressure Resistance: Given the high pressures involved in extrusion, the barrel must be able to withstand these forces without deforming or compromising the process.   b. Screw Elements   The screw elements are the heart of the twin screw extruder, responsible for conveying, compressing, melting, mixing, and pumping the material through the extruder.   Design and Geometry: Screw elements are typically modular and can be customized to optimize the mixing, shear, and conveying characteristics for specific applications. This modularity allows for a high degree of flexibility in the process, enabling the extruder to handle different materials and formulations effectively.   Material Requirements: Like the barrel, screw elements must be made from highly durable materials that can resist wear and corrosion. They are often constructed from high-strength tool steels or stainless steels, with additional coatings or treatments to extend their service life.   Shear and Mixing Performance: The geometry of the screw elements must be precisely engineered to provide the right balance of shear and mixing forces. This ensures that the polymer and additives are thoroughly mixed without degrading the material or causing excessive wear.   c. Shafts   The shafts in a twin screw extruder support the screw elements and transmit the rotational force from the gearbox to the screws.   Strength and Rigidity: The shafts must be made from high-strength materials to withstand the torsional forces generated during the extrusion process. They must also be rigid enough to maintain alignment and prevent deflection, which could lead to uneven mixing or damage to the screw elements and barrel.   Precision and Balance: The shafts must be precisely machined and balanced to ensure smooth operation at high speeds. Any imbalance can cause vibrations, leading to premature wear of the components and reduced efficiency.   Corrosion Resistance: In cases where aggressive additives or polymers are processed, the shafts must also offer corrosion resistance to prevent deterioration over time.   d. Gearbox   The gearbox is the power transmission unit that drives the twin screws. It converts the motor’s speed and torque to the appropriate levels required for the extrusion process.   Torque Capacity: The gearbox must be designed to handle the high torque demands of twin screw extrusion, particularly when processing high-viscosity materials or when using larger screw diameters. It must provide reliable torque transmission without overheating or failing.   Durability and Reliability: Given the continuous operation of extruders in industrial settings, the gearbox must be robust and capable of withstanding long-term use with minimal maintenance. This includes using high-quality bearings, gears, and lubrication systems to reduce wear and ensure smooth operation.   Precision Control: The gearbox must allow for precise control of screw speed, enabling the fine-tuning of the extrusion process. This is essential for achieving consistent product quality across different production runs.   Conclusion   In the plastics industry, co-rotating twin screw extruders play a pivotal role in a wide range of applications, from polymer compounding to recycling and the production of high-performance plastics. The performance of these extruders is heavily dependent on the quality and design of their key components: the barrel, screw elements, shafts, and gearbox. Each component must meet stringent requirements in terms of material durability, precision, and reliability to ensure the extruder operates efficiently and produces high-quality outputs. As the demands on plastic materials continue to grow, the importance of these components in driving innovation and efficiency in the plastics industry cannot be overstated.

2024

08/16
