ISO Certified Twin Screw Barrel for Industrial Pelletizing Lines
Product Specifications
| Attribute |
Value |
| Material |
EPDM, Hipx260, Cr12MOV, Wr13, W6mo5cr4V2, Wr30 |
| Weight |
50 kg |
| Spare Parts Type |
Barrel |
| Screw Design |
Twin screw |
| Application Machine |
Twin Screw Extruder |
| Range |
16.5 to 400mm |
| Standard |
GB ISO 9001 |
| Models Available |
Type 20/30/35/36/40/50/52/53/58/60/65/75/85/92/95/110/125/135 |
Product Description
The twin-screw extruder barrels produced by Zhitian feature high wear-resistance and corrosion-resistance, making them ideal for twin screw extruders across various industries.
Industry Applications: Our barrels are widely used in plastics, rubber, chemicals, food, and new energy industries. Countless extruders worldwide use our high-performance components.
Advanced Building Block Design
Our split twin-screw extruder barrels feature an innovative "building block" design:
- Allows flexible combination of screw components based on material process requirements
- Enables material transportation, refinement, shearing, and discharge optimization
- Resolves the versatility vs. specificity dilemma in screw design
- Permits partial replacement of worn components, reducing maintenance costs
Material Options
| Solid Barrel |
Hastelloy-C Alloy, 38CrMoAla, 304/316/316L Stainless Steel |
| Direct Compound Barrel |
ZT610 Ni60 Based+Cu, ZT615 Ni60 Based, ZT625 Ni60 Based+Tungsten carbide, HIP Cobalt Based+Tungsten carbide |
| Complete Liner Barrel |
38CrMoAla Liner, 440C Stainless Steel Liner, Cr12MoV Liner, SKD11/SKD61 Liner, DC53 Liner, W6Mo5Cr4V2 Liner, ZTCr26 Liner, SAM26/WR13 Liner, CPM10V/WR5 Liner, ZT610 Ni60 Based Liner+Cu, ZT615 Ni60 Based Liner, ZT625 Ni60 Based Liner+Tungsten carbide, HIP Cobalt Based Liner+Tungsten carbide |
| Compound Alloy Liner Barrel |
S45C+ZT610 Ni60 Based Liner+Cu, S45C+ZT615 Ni60 Based Liner, S45C+ZT625 Ni60 Based Liner+Tungsten carbide, S45C+HIP Cobalt Based Liner+Tungsten carbide |

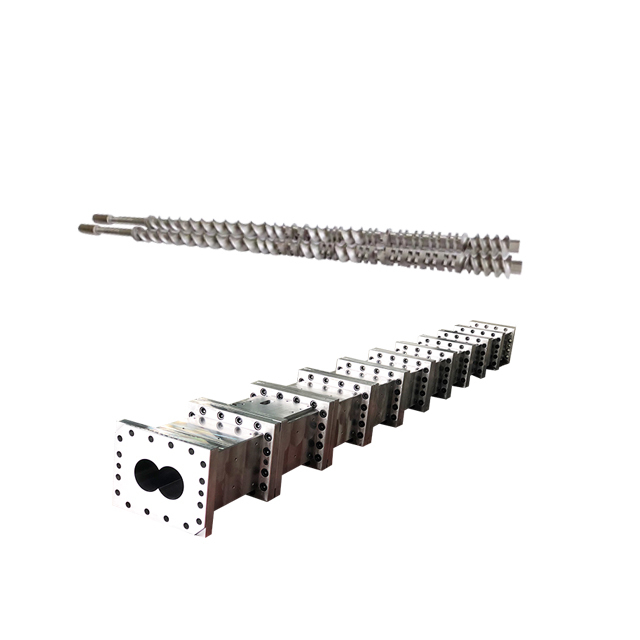

Product Gallery
Why Choose Zhitian's Extruder Barrel?
With extensive experience in twin-screw extruder screw barrels, we've developed innovative designs that increase output and enhance service life. We provide OEM services for leading extruder manufacturers worldwide.
Our Advantages
- Extended service life through premium materials
- Custom material selection for wear and corrosion resistance
- Professional technical team for precise measurement and design
- Comprehensive quality control with traceability
- Wide application range for processing diverse materials
Company Profile
Nanjing Zhitian specializes in manufacturing replacement parts for twin screw extruders, with over 20 years of experience producing gearboxes, barrels, and screw elements. We also provide refurbishment services.
Our company combines strong technical expertise, excellent processing equipment, advanced production technology, strict inspection systems, and comprehensive after-sales service.
Global Excellence in Extruder Components
As a leading global manufacturer of twin screw extruder components, we provide:
- High-efficiency gearboxes known for stability and durability
- Precision-engineered barrels for optimal equipment performance
- Custom screw elements and core shafts for specialized applications
- Technical support for industries from plastics to new energy
Frequently Asked Questions
Q1: What products and services does your company primarily offer?
A: We manufacture key components for twin-screw extruders including gearboxes, barrels, screw elements, and core shafts, known for excellent quality and professional service worldwide.
Q2: What are the features of your twin-screw extruder gearboxes?
A: Our gearboxes feature high efficiency, stability, and durability, with precision design and high-quality materials for outstanding industrial performance.
Q3: In which industries are your products widely used?
A: Our products serve plastics, rubber, synthetic fibers, food packaging, pharmaceuticals, and emerging fields like lithium battery production.
Q4: How can we obtain customized solutions?
A: Contact our customer service team for personalized product designs and technical support tailored to your specific requirements.
Q5: How can we establish a partnership with your company?
A: We welcome long-term partnerships. Contact our customer service team to discuss your needs and our product capabilities.
Q6: What is your company's guarantee for product quality?
A: We maintain rigorous quality control processes to ensure our products meet the highest standards and exceed customer expectations.
