Highlight:
twin screw extruder barrel for thermoplastics
, precision extruder barrel with warranty
, filled thermoplastics extruder screw barrel
Material: |
Steel |
Weight: |
30 Kg |
Spare Parts Type: |
Barrel |
Screw Design: |
Twin Screw |
Hardness: |
HRC 60~64 |
Diameter Range: |
16.5 To 400mm |
Model Types: |
20/30/35/36/40/50/52/53/58/60/65/75/85/92/95/110/125/135 |
Material Options: |
Hipx260, Cr12MOV, Wr13, W6mo5cr4V2, Wr30 |
Solid Barrel Materials: |
Hastelloy-C Alloy, 38CrMoAla, 304/316/316L Stainless Steel |
Direct Compound Barrel Materials: |
ZT610 Ni60 Based+Cu, ZT615 Ni60 Based, ZT625 Ni60 Based+Tungsten Carbide, HIP Cobalt Based+Tungsten Carbide |
Complete Liner Barrel Materials: |
38CrMoAla Liner, 440C Stainless Steel Liner, Cr12MoV Liner, SKD11/SKD61 Liner, DC53 Liner, W6Mo5Cr4V2 Liner, ZTCr26 Liner, SAM26/WR13 Liner, CPM10V/WR5 Liner, ZT610 Ni60 Based Liner+Cu, ZT615 Ni60 Based Liner, ZT625 Ni60 Based Liner+Tungsten Carbide, HIP C |
Compound Alloy Liner Barrel Materials: |
S45C+ZT610 Ni60 Based Liner+Cu, S45C+ZT615 Ni60 Based Liner, S45C+ZT625 Ni60 Based Liner+Tungsten Carbide, S45C+HIP Cobalt Based Liner+Tungsten Carbide |
Quality: |
High Wear-resistance And Corrosion-resistance |
Design Feature: |
Building Block Design |
Production Flexibility: |
OEM Supported |

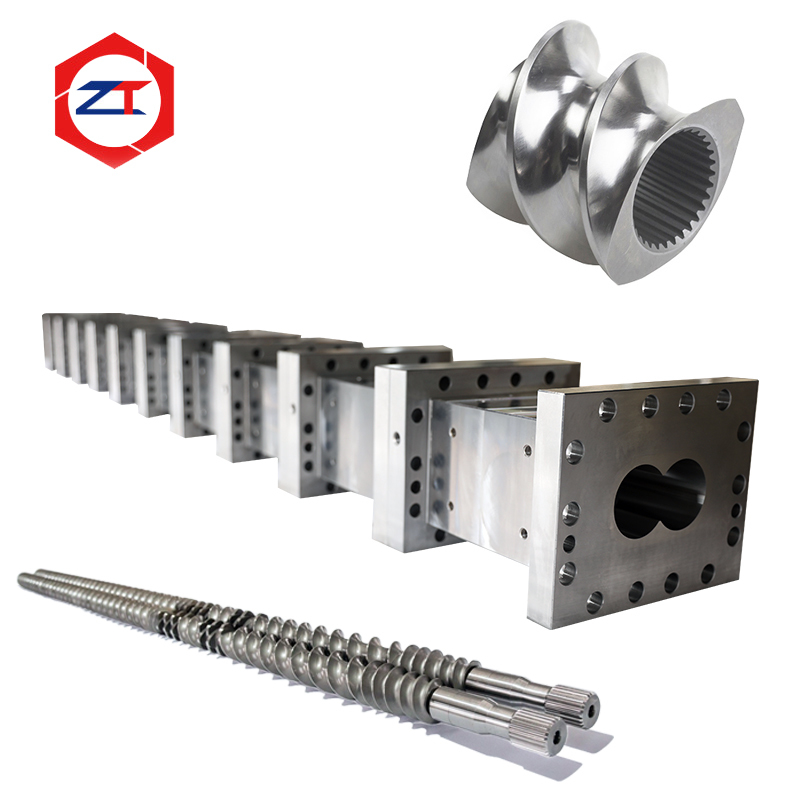

Precision Twin Screw Extruder Barrel for Filled Thermoplastics
Precision Machined Screw Barrel for Extrusion of Filled Thermoplastics
Product Specifications
| Attribute |
Value |
| Material |
Steel (Hipx260, Cr12MOV, Wr13, W6mo5cr4V2, Wr30) |
| Weight |
30 kg |
| Screw Design |
Twin screw |
| Application Machine |
Twin Screw Extruder |
| Range |
16.5 to 400mm |
| Hardness |
HRC 60~64 |
| Standard |
GB ISO 9001 |
| After-Sales Service |
Engineers Available to Service Machinery Overseas |
Product Description
Our high-performance twin-screw extruder barrels feature:
- High wear-resistance and corrosion-resistance
- Available in models: 20/30/35/36/40/50/52/53/58/60/65/75/85/92/95/110/125/135
- Widely used in plastics, rubber, chemicals, food, and new energy industries
Advanced Building Block Design
Our split twin-screw extruder features an innovative modular design where screw blocks can be flexibly combined according to material process requirements. This design:
- Enables material transportation, refinement, shearing, and discharge optimization
- Resolves the versatility vs. specificity contradiction in screw design
- Allows partial replacement of worn components, reducing maintenance costs
Barrel Types and Materials
| Barrel Type |
Materials |
| Solid Barrel |
Hastelloy-C Alloy, 38CrMoAla, 304/316/316L Stainless Steel |
| Direct Compound Barrel |
ZT610 Ni60 Based+Cu, ZT615 Ni60 Based, ZT625 Ni60 Based+Tungsten carbide, HIP Cobalt Based+Tungsten carbide |
| Complete Liner Barrel |
38CrMoAla Liner, 440C Stainless Steel Liner, Cr12MoV Liner, SKD11/SKD61 Liner, DC53 Liner, and other specialized alloys |
| Compound Alloy Liner Barrel |
S45C base with various alloy liners including ZT series and HIP Cobalt Based+Tungsten carbide |
Why Choose Zhitian Extruder Barrels?
With extensive experience in twin-screw extruder screw barrels, we've developed innovative designs that increase output and enhance service life. We provide OEM services for global extruder manufacturers.
Our Advantages
- Extended service life through premium materials
- Custom material selection for wear and corrosion resistance
- Professional technical support for design and component combinations
- Comprehensive quality control with traceability
- Wide application range for processing diverse materials
Company Profile
Nanjing Zhitian specializes in manufacturing replacement parts for twin screw extruders with over 20 years of experience. Our capabilities include:
- Manufacturing gearboxes, barrels, and screw elements
- Refurbishment services for gearboxes and barrels
- Strong technical team and excellent processing equipment
- Advanced production technology and strict inspection system
- Comprehensive after-sales service
Frequently Asked Questions
What products and services does your company primarily offer?
We manufacture key components for twin-screw extruders including gearboxes, barrels, screw elements, and core shafts, renowned for excellent quality and professional service.
What are the features of your twin-screw extruder gearboxes?
Our gearboxes feature high efficiency, stability, and durability, with precision design and high-quality materials for outstanding industrial performance.
In which industries are your products widely used?
Our products serve plastics, rubber, synthetic fibers, food packaging, pharmaceuticals, and emerging fields like lithium battery slurry coating.
How can we obtain customized solutions?
We provide personalized product designs and technical support. Contact our customer service team for detailed customization options.
What is your company's guarantee for product quality?
We maintain rigorous quality control processes to deliver products that meet the highest standards and exceed customer expectations.
