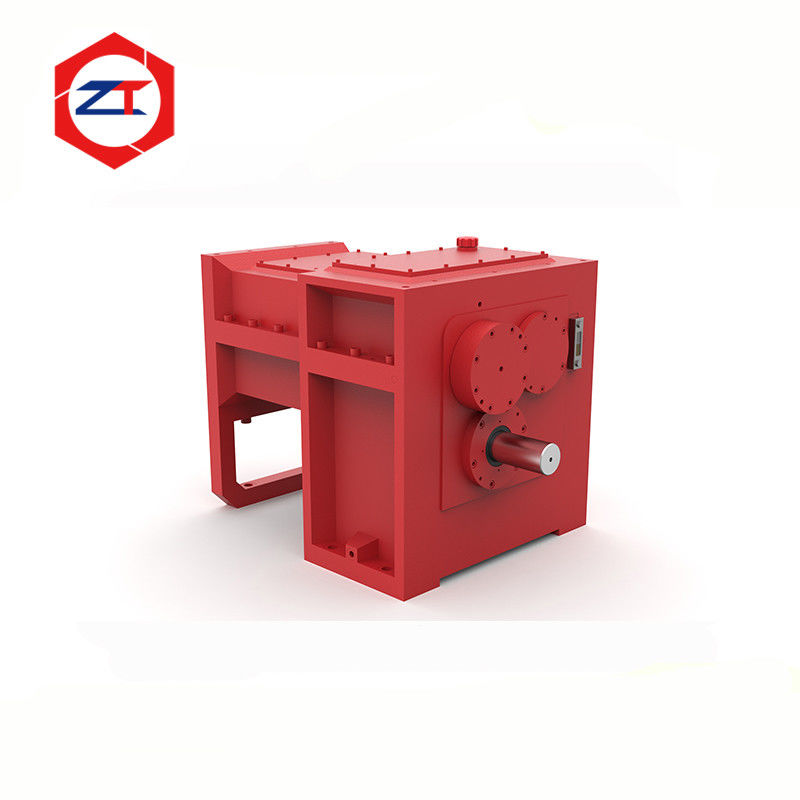

TDSN52 Gearbox for Twin Screw Extruder with Integrated Torque Split System

TDSN52 High Speed Gear Box 500kg Weight For Rubber Machinery

Twin Screw Gearbox Features
--- High Speed
---Triaxiality parallel design improve B axis bearing capacity.
---Simple manufacture and convenient assemply.Lower the cost.
---Modular structure design achieve two kinds of gearbox torque grade.

Twin Screw Gearbox Introduction

The TDSN52 gearbox is a high-precision transmission unit designed specifically for co-rotating twin screw extruders. It features an integrated torque split and output balancing system, which improves power distribution efficiency and reduces gear stress. Made from high-grade alloy steel and carburized for surface hardness, the gears ensure long service life even under continuous high-load operation. With a compact housing, advanced oil lubrication, and optional cooling modules, the TDSN52 is optimized for high-speed compounding, engineering plastics, and masterbatch applications. Compatible with major extruder brands, it delivers stable torque output, low noise, and minimal vibration.




Twin Screw Gearbox Parameters

Production Process

	NO.1 Workblank Select high quality and hardness of ductile iron material.
NO.2 Rough Machining Mang sets of rough machining equipment,such as Gantry-type milling,Radial drill,etc.Realized the blank shape and the inner hole of rough maching.
	NO.3 Finish Machining Many sets of finishing equipment,such as CNC Grinding Machine,NC Boring Machine,etc.Further processing of each working procedure,the accuracy is higher,only you.
NO.4 Gearbox Inspection High-end testing equipment and instruments,processional inspection team,the gearbox shape,center distance,inner hole and into the next procedure,after inspection and correct.
	NO.5 Assemble Strong assembly and R&D team,the parts will be assembled according to the drawing,step by step audit,by running test after product finished.
NO.6 Delivery Export standard packing,packaging,use at the bottom of the fixed plate,ensure that the peoduct does not shift in transit.

FAQ

Q1: What parts are included with the product?
A: The gearbox package typically includes the gearbox body, coupling, spline shaft, external oil circulation system, and operation manual. Additional accessories can be provided based on your specific requirements.

Q2: How long will it take to receive the product after payment?
A: Delivery time depends on your order quantity and customization details. Once the order is confirmed, we will provide you with an estimated delivery schedule.

Q3: Does the product come with a one-year warranty?
A: A one-year warranty is available upon request and may involve an extra cost. That said, our products are thoroughly tested and built for long-term performance.

Q4: What after-sales support do you provide?
A: If you encounter any issues during use, please contact us immediately. Our team will respond promptly and provide the necessary technical support or solutions.
