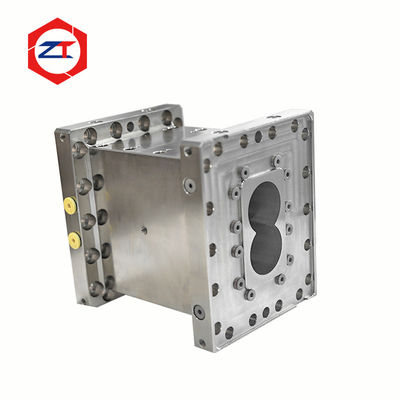

Product Details
Place of Origin: CHINA
Brand Name: ZHITIAN
Model Number: 75
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: consult with
Packaging Details: Wooden Box
Delivery Time: 30-60 days
Payment Terms: T/T
Supply Ability: 600 Pieces/Month
Material: |
42CrMo+ZT615(HIP Ni60 Based) |
Dimension(L*W*H）: |
290mm*284mm*240mm |
Hole Diameter: |
Φ71.8mm |
Center Distance: |
60mm |
Color: |
Metal |
Weight: |
50KG |
Experience: |
20 Years |
Application: |
Plastic Industry |
Wear: |
High Wear-resistant |
Assemble: |
Yes |
Material: |
42CrMo+ZT615(HIP Ni60 Based) |
Dimension(L*W*H）: |
290mm*284mm*240mm |
Hole Diameter: |
Φ71.8mm |
Center Distance: |
60mm |
Color: |
Metal |
Weight: |
50KG |
Experience: |
20 Years |
Application: |
Plastic Industry |
Wear: |
High Wear-resistant |
Assemble: |
Yes |
We can satisfy your different material needs:
According to appearance design,Closed Barrel,Feeder Barrel,Side Feeder Barrel,Venting Barrel,Combi Barrel.
According to the liner,With liner barrel,Without liner barrel.
According to Materical,
-For wear application:C liner;Cr26；Cr12MoV;W6Mo5Cr4V2;
-For corrosion application:38CrMoAla;Hac alloy;
-For wear and corrosion application:Nickel based alloy;316L,304;WR13,SAM26etc.
Through the understanding of customers,recommend the most valuable material.
Barrel Dimensions
|
Screw Barrel Specifications Table
|
||||
| NO. | Model | L*W*H(MM) | Hole Diameter/Φ(MM) | Center Distance/D(MM) |
| 1 | 20 | 132*115*105 | Φ23 | 18.4 |
| 2 | 30 | 120*135*115 | Φ30.6 | 26 |
| 3 | 35 | 140*140*120 | Φ36 | 30 |
| 4 | 36 | 150*160*140 | Φ36 | 30 |
| 5 | 40 | 160*175*145 | Φ41.6 | 34.5 |
| 6 | 50 | 190*190*150 | Φ51 | 42 |
| 7 | 52 | 210*200*155 | Φ52 | 43 |
| 8 | 53 | 220*210*160 | Φ53.3 | 48 |
| 9 | 58 | 240*220*175 | Φ58 | 48 |
| 10 | 60 | 240*210*170 | Φ60 | 52 |
| 11 | 65 | 240*210*170 | Φ63 | 52 |
| 12 | 75 | 290*260*200 | Φ71.8 | 60 |
| 13 | 85 | 320*280*215 | Φ81.9 | 67.8 |
| 14 | 92 | 360*310*240 | Φ92 | 78 |
| 15 | 95 | 360*310*240 | Φ94 | 78 |
| 16 | 110 | 420*330*240 | Φ109 | 91.5 |
| 17 | 125 | 500*390*290 | Φ125 | 98 |
| 18 | 135 | 520*440*340 | Φ134 | 110 |
Packaging
|
|
|
|
All ZT keep pay attention to every step of the details,We are looking forward to the forge ahead together with you!
|
||
