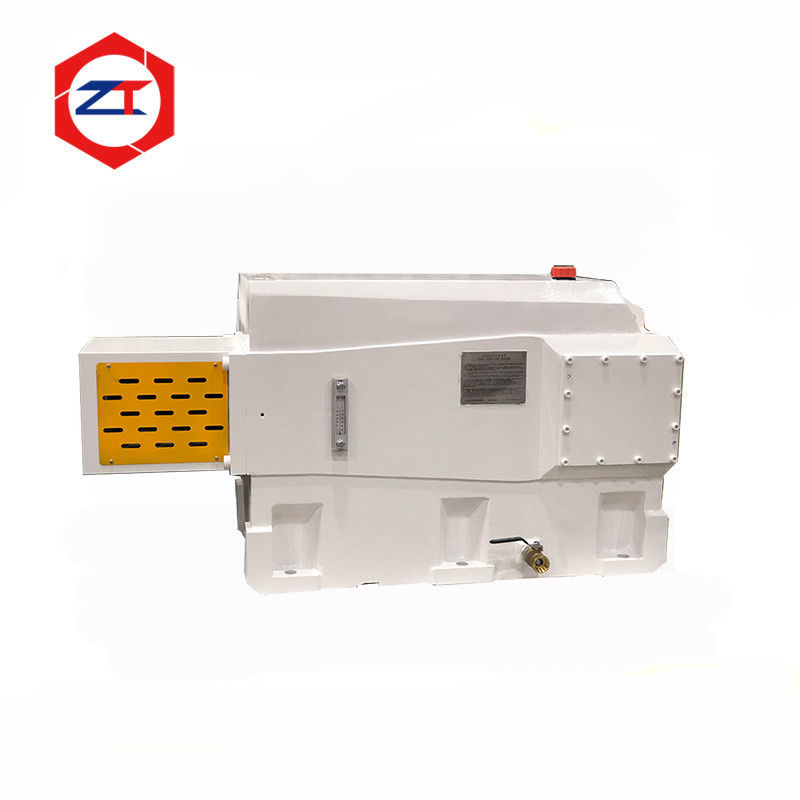

OEM Precision Twin Screw Plastic Extruder Gearbox For Pvc Product Repair And Replace Imported Gearbox

Product Details

Place of Origin: CHINA

Brand Name: ZHITIAN

Model Number: SHTD75N

Payment & Shipping Terms

Minimum Order Quantity: Negotiation

Price: Negotiable

Packaging Details: Wooden Box

Delivery Time: 30-60 days

Payment Terms: L/C, T/T

Supply Ability: 50 Pieces/Month

Get Best Price
Highlight:

precision planetary gearbox

,

twin screw gearbox

Name:
Precision Planetary Gearbox
Material:
Cast Iron
Application:
Power Transmission Gearbox
RPM Speed:
300-900r/min
Power:
160-500kw
Torque:
2387-2685N.M
Specific Torque (T/A3):
11.05-12.43MM
Feature:
High Precision
CD:
60mm
Name:
Precision Planetary Gearbox
Material:
Cast Iron
Application:
Power Transmission Gearbox
RPM Speed:
300-900r/min
Power:
160-500kw
Torque:
2387-2685N.M
Specific Torque (T/A3):
11.05-12.43MM
Feature:
High Precision
CD:
60mm
OEM Precision Twin Screw Plastic Extruder Gearbox For Pvc Product Repair And Replace Imported Gearbox

OEM Precision Planetary Gearbox , Durable Power Transmission Gearbox



Precision Planetary Gearbox Introduction



Precision Planetary Gearbox Adopting latest standard ISO1328,the precision of cylindrical gear of spherical involute, and combining our long term experience and specialty of twin-screw extruders, Precision Planetary Gearbox are meticulously designed with top advanced designing ideas in the world for co-orientated rotating twin-screw extruders, with entirely independent Intellectual Property Rights.

Precision Planetary Gearbox Key Features



---Double drive design enables the b axis to be driven by two gearsithout increasing the tooth width.

---Optimal structure and complex assembly lead to the cost rise.



Precision Planetary Gearbox Parameters





SHTDN Twin Screw Extruder Gearbox Parameters






SHTDN Gearbox Power&Torque Table
Model CD(MM) Torque Grade(T/A3) RPM 300r/min RPM 400r/min RPM 500r/min RPM 600r/min RPM 800r/min RPM 900r/min
SHTD20N 18 <13 --- --- --- 7.5kw 11kw ---
SHTD25N 22 <13 --- --- 11kw 15kw 18.5kw 22kw
SHTD30N 26 <13 --- --- --- 22kw 30kw 37kw
SHTD35N 30 <13 18.5kw 22kw 30kw 37kw 50kw 60kw
SHTD40N 34.5 <13 30kw 45kw 55kw 65kw 90kw 90kw
SHTD50N 42 <13 55kw 75kw 90kw 110kw 132kw 160kw
SHTD52N 43 <13 55kw 75kw 90kw 110kw 132kw 160kw
SHTD58N 48 <13 90kw 110kw 132kw 160kw 220kw 250kw
SHTD65N 52 <13 110kw 132kw 160kw 220kw 280kw 315kw
SHTD75N 60 <13 160kw 220kw 250kw 315kw 450kw 500kw
SHTD85N 67.8 <13 220kw 315kw 400kw 500kw 600kw 650kw
SHTD95N 78 <13 350kw 450kw 550kw 650kw 900kw 1000kw
SHTD110N 92 <13 560kw 710kw 900kw 1000kw --- ---
SHTD125N 100 <13 800kw 1000kw 1250kw 1400kw --- ---
SHTD135N 110 <13 1000kw 1400kw 1600kw 2000kw --- ---
SHTD150N 120 <13 1320kw 1750kw --- --- --- ---



Production Process



Workblank



Select high quality and hardness of ductile iron material.



Rough Machining



Mang sets of rough machining equipment,such as Gantry-type milling,Radial drill,etc.Realized the blank shape and the inner hole of rough maching.



Finish Machining



Many sets of finishing equipment,such as CNC Grinding Machine,NC Boring Machine,etc.Further processing of each working procedure,the accuracy is higher,only you.



Finish Machining



Many sets of finishing equipment,such as CNC Grinding Machine,NC Boring Machine,etc.Further processing of each working procedure,the accuracy is higher,only you.



Gearbox Inspection



High-end testing equipment and instruments,processional inspection team,the gearbox shape,center distance,inner hole and into the next procedure,after inspection and correct.



Assemble



Strong assembly and R&D team,the parts will be assembled according to the drawing,step by step audit,by running test after product finished.



Delivery



Export standard packing,packaging,use at the bottom of the fixed plate,ensure that the peoduct does not shift in transit.als.
