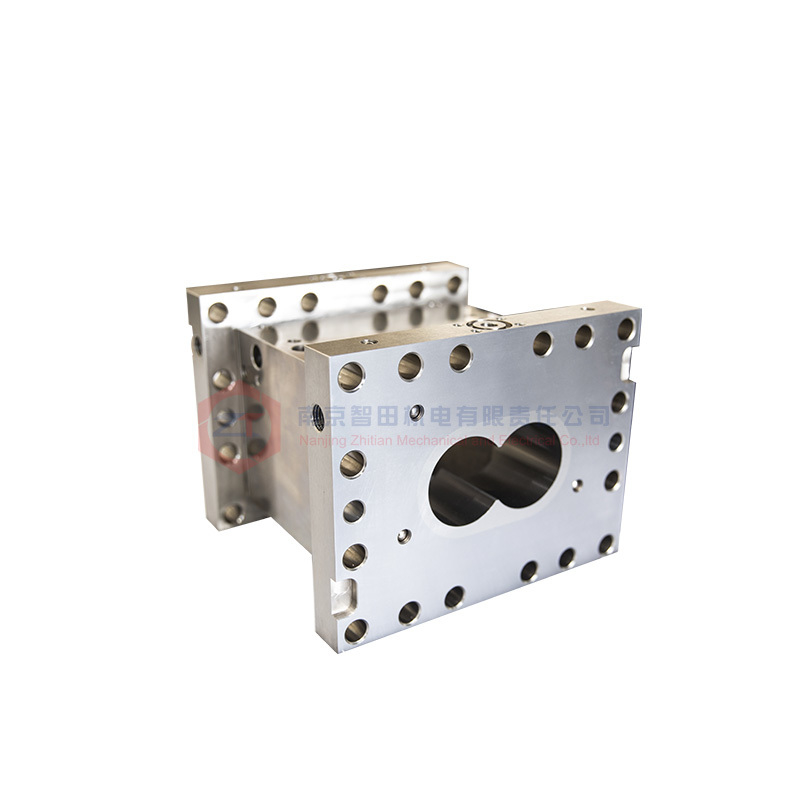

Cr26 Twin Screw Extruder Barrel 70 for Plastic Compounding

Product Details

Place of Origin: Jiangsu, China

Brand Name: ZHITIAN

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $350-400

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Cr26 twin screw extruder barrel, plastic compounding extruder barrel, 70mm extruder screw barrel


Material:	Cr26	Weight:	30 Kg
Spare Parts Type:	Barrel	Screw Design:	Twin Screw
Material Composition:	45#+W2(Cr26)	Color:	Metal
Model Types:	20/30/35/36/40/50/52/53/58/60/65/75/85/92/95/110/125/135	Quality:	High Wear-resistance And Corrosion-resistance
Used For:	Twin Screw Extruder	Barrel Type:	Solid Barrel, Direct Compound Barrel, Complete Liner Barrel, Compound Alloy Liner Barrel
Solid Barrel Materials:	Hastelloy-C Alloy, 38CrMoAla, 304/316/316L Stainless Steel	Direct Compound Barrel Materials:	ZT610 Ni60 Based+Cu, ZT615 Ni60 Based, ZT625 Ni60 Based+Tungsten Carbide, HIP Cobalt Based+Tungsten Carbide
Complete Liner Barrel Materials:	38CrMoAla Liner, 440C Stainless Steel Liner, Cr12MoV Liner, SKD11/SKD61 Liner, DC53 Liner, W6Mo5Cr4V2 Liner, ZTCr26 Liner, SAM26/WR13 Liner, CPM10V/WR5 Liner, ZT610 Ni60 Based Liner+Cu, ZT615 Ni60 Based Liner, ZT625 Ni60 Based Liner+Tungsten Carbide, HIP C	Compound Alloy Liner Barrel Materials:	S45C+ZT610 Ni60 Based Liner+Cu, S45C+ZT615 Ni60 Based Liner, S45C+ZT625 Ni60 Based Liner+Tungsten Carbide, S45C+HIP Cobalt Based Liner+Tungsten Carbide
Design Feature:	Building Block Design

Material:	Cr26
Weight:	30 Kg
Spare Parts Type:	Barrel
Screw Design:	Twin Screw
Material Composition:	45#+W2(Cr26)
Color:	Metal
Model Types:	20/30/35/36/40/50/52/53/58/60/65/75/85/92/95/110/125/135
Quality:	High Wear-resistance And Corrosion-resistance
Used For:	Twin Screw Extruder
Barrel Type:	Solid Barrel, Direct Compound Barrel, Complete Liner Barrel, Compound Alloy Liner Barrel
Solid Barrel Materials:	Hastelloy-C Alloy, 38CrMoAla, 304/316/316L Stainless Steel
Direct Compound Barrel Materials:	ZT610 Ni60 Based+Cu, ZT615 Ni60 Based, ZT625 Ni60 Based+Tungsten Carbide, HIP Cobalt Based+Tungsten Carbide
Complete Liner Barrel Materials:	38CrMoAla Liner, 440C Stainless Steel Liner, Cr12MoV Liner, SKD11/SKD61 Liner, DC53 Liner, W6Mo5Cr4V2 Liner, ZTCr26 Liner, SAM26/WR13 Liner, CPM10V/WR5 Liner, ZT610 Ni60 Based Liner+Cu, ZT615 Ni60 Based Liner, ZT625 Ni60 Based Liner+Tungsten Carbide, HIP C
Compound Alloy Liner Barrel Materials:	S45C+ZT610 Ni60 Based Liner+Cu, S45C+ZT615 Ni60 Based Liner, S45C+ZT625 Ni60 Based Liner+Tungsten Carbide, S45C+HIP Cobalt Based Liner+Tungsten Carbide
Design Feature:	Building Block Design

Cr26 Twin Screw Extruder Barrel 70 for Plastic Compounding

High Wear Resistance 70 Twin Screw Extruder Barrel

Product Specifications

Attribute	Value
Material	Cr26
Weight	30 kg
Spare Parts Type	Barrel
Warranty	1 Year
Screw Design	Twin Screw
Application Machine	Twin Screw Extruder
Packing	Wooden Box

Product Description

Our high-performance twin screw extruder barrels feature:

Metal construction with high wear-resistance and corrosion-resistance
Compliance with GB ISO 9001 standards
Available in multiple models (20/30/35/36/40/50/52/53/58/60/65/75/85/92/95/110/125/135)
Wide application in plastics, rubber, chemicals, food, and new energy industries

Advanced Building Block Design

Our split twin-screw extruder features an innovative building block design:

Screw composed of various screw blocks installed on mandrel and barrel lining
Flexible combination options for different material processing requirements
Enables material transportation, refinement, shearing, and discharge
Allows partial replacement of worn components, reducing maintenance costs

Barrel Types & Materials

Barrel Type	Materials
Solid Barrel	Hastelloy-C Alloy, 38CrMoAla, 304/316/316L Stainless Steel
Direct Compound Barrel	ZT610 Ni60 Based+Cu, ZT615 Ni60 Based, ZT625 Ni60 Based+Tungsten carbide, HIP Cobalt Based+Tungsten carbide
Complete Liner Barrel	38CrMoAla Liner, 440C Stainless Steel Liner, Cr12MoV Liner, SKD11/SKD61 Liner, DC53 Liner, and more
Compound Alloy Liner Barrel	S45C+ZT610 Ni60 Based Liner+Cu, S45C+ZT615 Ni60 Based Liner, S45C+ZT625 Ni60 Based Liner+Tungsten carbide

Product Gallery

Why Choose Zhitian Extruder Barrels?

With extensive experience in twin-screw extruder screw barrels, we've developed innovative designs that increase output and enhance service life. We provide OEM services for global extruder manufacturers.

Our Advantages

Extended service life with high wear-resistant materials
Professional technical team for precise measurements and design
Comprehensive quality control with traceability for each product
Wide application range for processing various materials
Modern management system ensuring 100% qualified products

Company Profile

NANJING ZHITIAN specializes in manufacturing replacement parts for twin screw extruders with over 20 years of experience. We produce gearboxes, barrels, and screw elements, and provide refurbishment services.

With strong technical capabilities, excellent processing equipment, advanced production technology, strict inspection systems, and comprehensive after-sales service, our products are used by major global brands.

Frequently Asked Questions

What products does your company offer?

We manufacture key components for twin-screw extruders including gearboxes, barrels, screw elements, and core shafts.

What industries use your products?

Our products are used in plastics, rubber, synthetic fibers, food packaging, pharmaceuticals, and new energy applications like lithium battery production.

Do you offer customized solutions?

Yes, we provide personalized product designs and technical support to meet specific customer requirements.
