Wear Resistant Screw Barrel for Extrusion Applications in Plastic Compounding
Screw Design
Double-screw
Twin Screw Type
Co-rotating Parallel Twin-screw
Product Description

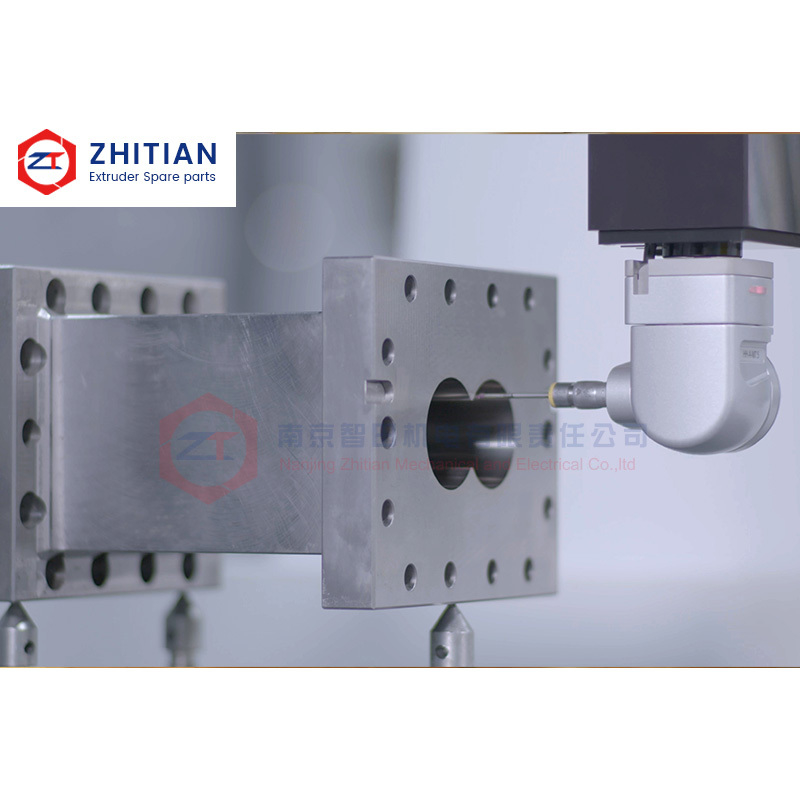

This wear-resistant screw barrel for extrusion is specifically developed for abrasive plastic compounding tasks. By applying a nickel-based alloy cladding layer through laser technology, the inner surface achieves excellent durability against glass fiber, talc, or calcium carbonate-filled materials. Combined with high-precision CNC machining, it ensures long-term operation with minimal dimensional loss. Ideal for high-output twin screw extruders.
Advanced "Building Block" Design
The main screw and barrel of the split twin-screw extruder adopt an advanced "building block" design. The screw is composed of various screw blocks installed on the mandrel and barrel lining, forming a sleeve that can be adjusted according to different screw blocks. This design allows the screw component structure to be flexibly combined according to the process requirements of the material variety to achieve material transportation, refinement, shearing, and discharge.
Reduced Maintenance Costs
Another advantage of the "building block" design is that worn screw and barrel components can be partially replaced, preventing the entire screw or barrel from being scrapped and greatly reducing maintenance costs. This means you save time and money without having to replace the entire unit or buy an entirely new barrel.
Material Specifications
| Type Of Barrels |
Materials |
| Solid Barrel |
Hastelloy-C Alloy, 38CrMoAla, 304/316/316L Stainless Steel |
| Direct Compound Barrel |
ZT610 Ni60 Based+Cu, ZT615 Ni60 Based, ZT625 Ni60 Based+Tungsten carbide, HIP Cobalt Based+Tungsten carbide |
| Complete Liner Barrel |
38CrMoAla Liner, 440C Stainless Steel Liner, Cr12MoV Liner, SKD11/SKD61 Liner, DC53 Liner, W6Mo5Cr4V2 Liner, ZTCr26 Liner, SAM26/WR13 Liner, CPM10V/WR5 Liner, ZT610 Ni60 Based Liner+Cu, ZT615 Ni60 Based Liner, ZT625 Ni60 Based Liner+Tungsten carbide, HIP Cobalt Based Liner+Tungsten carbide |
| Compound Alloy Liner Barrel |
S45C+ZT610 Ni60 Based Liner+Cu, S45C+ZT615 Ni60 Based Liner, S45C+ZT625 Ni60 Based Liner+Tungsten carbide, S45C+HIP Cobalt Based Liner+Tungsten carbide |
Why Choose Zhitian's Extruder Barrel?
We have extensive experience in twin-screw extruder screw barrels. Through continuous practice, we have developed a variety of new screw barrels, which, with different screw designs, greatly increase output and enhance service life. We also provide OEM services for well-known extruder complete machine manufacturers worldwide. Zhitian is one of the best extruder barrel manufacturers in China.
Our Advantages
- Long service life
- Material: Choose materials with high wear resistance, corrosion resistance or both according to customer needs
- Professional technical team provides timely sample measurement, design, and component combination services
- Complete modern management system ensures 100% qualified products with traceable quality
- Wide range of applications for processing various materials
Company Profile
NANJING ZHITIAN is specialized in the manufacturing of replacement parts for twin screw extruder with more than 20 years experience. We manufacture gearboxes, barrels and screw elements of twin screw extruders and provide refurbishment services for gearboxes and barrels.
Our company has strong technical force, excellent processing equipment, advanced production technology, strict inspection system and perfect after-sales service. Our products have been maturely applied in major global well-known brands.
We keep paying attention to every step of the details and look forward to forging ahead together with you!
Frequently Asked Questions
Q1: What products and services does your company primarily offer?
A: Our company is a leading global manufacturer of key components for twin-screw extruders, mainly providing critical components such as twin-screw extruder gearboxes, barrels, screw elements, and core shafts.
Q2: What are the features of your twin-screw extruder gearboxes?
A: Our twin-screw extruder gearboxes are characterized by high efficiency, stability, and durability, providing powerful propulsion for our customers.
Q3: In which industries are your products widely used?
A: Our products find extensive applications in industries such as processing high-molecular materials like plastics, rubber, and synthetic fibers, as well as in packaging for food, pharmaceuticals, and emerging fields like lithium battery slurry coating in new energy sources.
Q4: How can we obtain customized solutions?
A: We provide personalized product designs and professional technical support for our customers. Contact our customer service team for detailed customization options.
Q5: How can we establish a partnership with your company?
A: We welcome long-term partnerships. Contact our customer service team for more information about our products and services.
Q6: What is your company's guarantee for product quality?
A: We are committed to delivering high-quality products and ensure compliance with the highest standards through rigorous quality control processes.
