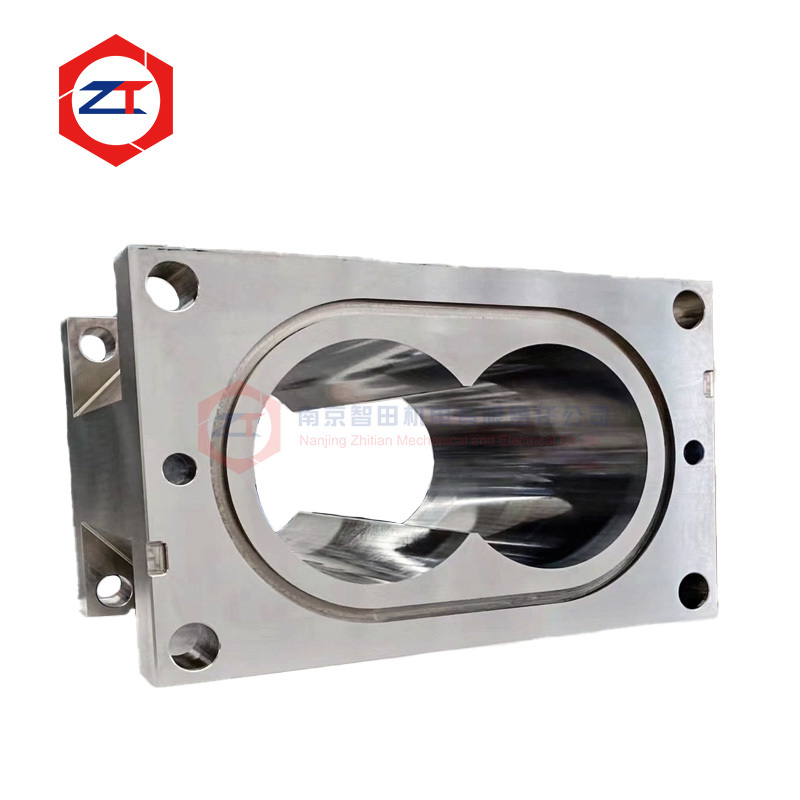

Custom Twin Screw Barrel for XPS Plates Extruder 60mm Diameter

Product Details

Place of Origin: Jiangsu, China

Brand Name: zhitian

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: US$280-300

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                custom twin screw barrel, XPS plates extruder barrel, 60mm diameter extruder screw


Screw Design:	Double-screw	Twin Screw Type:	Co-rotating Parallel Twin-screw
Screw Material:	42CrMo	Screw Diameter:	60mm
Screw Speed:	400 Rpm	Center Distance:	71.8mm
Weight:	1000 KG	Processing Method:	CNC + Heat Treatment
Material Options:	Cr26, Nickel Based Alloy, SAM26	Wear Resistance:	High Anti-wear And Anti-corrosion
Processing Type:	Co-extrusion	Core Components:	Bearing, Gearbox, Screw
Dimensions:	290x260x200 Mm	Voltage:	Custom
L/D Ratio:	Custom

Screw Design:	Double-screw
Twin Screw Type:	Co-rotating Parallel Twin-screw
Screw Material:	42CrMo
Screw Diameter:	60mm
Screw Speed:	400 Rpm
Center Distance:	71.8mm
Weight:	1000 KG
Processing Method:	CNC + Heat Treatment
Material Options:	Cr26, Nickel Based Alloy, SAM26
Wear Resistance:	High Anti-wear And Anti-corrosion
Processing Type:	Co-extrusion
Core Components:	Bearing, Gearbox, Screw
Dimensions:	290x260x200 Mm
Voltage:	Custom
L/D Ratio:	Custom

Custom Twin Screw Barrel for XPS Plates Extruder 60mm Diameter

Customized Screw Barrel for Extrusion Machines with Modular Design

Product Specifications

Attribute	Value
Plastic Processed	Xps
Application	Plates
Screw Design	Double-screw
Twin Screw Type	Co-rotating Parallel Twin-screw
Screw Material	42CrMo
Screw Diameter	60mm
Screw L/D Ratio	Custom
Screw Speed	400 rpm
Weight	1000 KG
Warranty	12 Months

Product Description

This wear-resistant screw barrel for extrusion is specifically developed for abrasive plastic compounding tasks. By applying a nickel-based alloy cladding layer through laser technology, the inner surface achieves excellent durability against glass fiber, talc, or calcium carbonate-filled materials. Combined with high-precision CNC machining, it ensures long-term operation with minimal dimensional loss.

Key Features

Modular "Building Block" Design: Allows flexible screw component configuration for different material processing requirements
Reduced Maintenance Costs: Worn components can be partially replaced without scrapping entire units
Advanced Materials: ZT615 and ZT625 nickel-based alloys with tungsten carbide for superior wear resistance
Precision Manufacturing: CNC machining combined with heat treatment for optimal performance
High Corrosion Resistance: Specially developed for abrasive plastic compounding applications

Available Barrel Types & Materials

Solid Barrel	Hastelloy-C Alloy, 38CrMoAla, 304/316/316L Stainless Steel
Direct Compound Barrel	ZT610 Ni60 Based+Cu, ZT615 Ni60 Based, ZT625 Ni60 Based+Tungsten carbide, HIP Cobalt Based+Tungsten carbide
Complete Liner Barrel	38CrMoAla Liner, 440C Stainless Steel Liner, Cr12MoV Liner, SKD11/SKD61 Liner, DC53 Liner, W6Mo5Cr4V2 Liner, ZTCr26 Liner, SAM26/WR13 Liner, CPM10V/WR5 Liner, ZT610 Ni60 Based Liner+Cu, ZT615 Ni60 Based Liner, ZT625 Ni60 Based Liner+Tungsten carbide, HIP Cobalt Based Liner+Tungsten carbide
Compound Alloy Liner Barrel	S45C+ZT610 Ni60 Based Liner+Cu, S45C+ZT615 Ni60 Based Liner, S45C+ZT625 Ni60 Based Liner+Tungsten carbide, S45C+HIP Cobalt Based Liner+Tungsten carbide

Product Gallery

Why Choose Zhitian's Extruder Barrel?

With over 20 years of experience in manufacturing twin-screw extruder components, we have developed a variety of innovative screw barrels that increase output and enhance service life. Our products are used by leading extruder manufacturers worldwide, and we provide OEM services to global brands.

Our Advantages

Extended service life through advanced materials and manufacturing
Custom material selection for specific wear and corrosion requirements
Professional technical support for component design and combination
Comprehensive quality control with traceability for every product
Wide application range suitable for processing various materials

Frequently Asked Questions

What products and services does your company primarily offer?

We specialize in manufacturing key components for twin-screw extruders, including gearboxes, barrels, screw elements, and core shafts, known for their excellent quality and professional service.

What are the features of your twin-screw extruder gearboxes?

Our gearboxes are characterized by high efficiency, stability, and durability, with precision design and high-quality materials ensuring outstanding performance across various industrial applications.

How can we obtain customized solutions?

We provide personalized product designs and professional technical support. Contact our customer service team for detailed customization options tailored to your specific requirements.
