W6Cr5Mo4V2 Kneading Block Involute Spline Extruder Screw Elements In Heating Element

Name: W6Cr5Mo4V2 Kneading Block Involute Spline Extruder Screw Elements In Heating Element
Brand: Nanjing Zhitian Mechanical And Electrical Co., Ltd.
SKU: CTE75
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: ZHITIAN

Model Number: CTE75

Payment & Shipping Terms

Minimum Order Quantity: 500mm

Price: Timely quotation

Packaging Details: Wooden Box or Paper Box

Delivery Time: 5-60 days

Payment Terms: L/C, T/T

Supply Ability: 500 Sets / Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                    W6Cr5Mo4V2 Kneading Block, Involute Spline Extruder Screw Elements, Heating Extruder Screw Elements


Material:	W6Cr5Mo4V2	Hardness:	HRC 58-62
Heat Treatment:	Vacuum Quenching	Surface Treatment:	Sand Blast/polishing
Application:	Granles, Sheet, Profile	Plastic Processed:	PE,ABS,PS,EVA,PET,PP,PBT,PA

Material:	W6Cr5Mo4V2
Hardness:	HRC 58-62
Heat Treatment:	Vacuum Quenching
Surface Treatment:	Sand Blast/polishing
Application:	Granles, Sheet, Profile
Plastic Processed:	PE,ABS,PS,EVA,PET,PP,PBT,PA

W6Cr5Mo4V2 Kneading Block Involute Spline Extruder Screw Elements In Heating Element

W6Cr5Mo4V2 Kneading Block , Involute Spline Twin Screw Extruder Elements Screw In Heating Element

Product Name	W6Cr5Mo4V2 Kneading Block , Involute Spline Twin Screw Extruder Elements Screw In Heating Element
Material	WR5/W6Mo5Cr4V2
Color	Metal
Standard	GB ISO 9001
Grade	Type 20/30/35/40/52/65/75/85/95/120/135
Brand	Zhitian
HRC	58-62
Used	Spare parts for twin screw extruder


Co-rotating twin screw elements for

W&P:                                                  Berstorff: ZE

Leistritz: ZSE-MICRO                         Theysohn: TSK

Maris: TM-W                                       APV: MP65
JSW: TEX                                           SM: TEK-HS

Feddem: FED-MTS                            Fessia Macross: NRII
TOSHIBA: TEM                                  Labtech: LTE

USEON: TDS                                     SHIZHOU: MTE

KEYA,LANTAI
Types of the Screw Segments

Convey Screw Segment Mixing Screw Segment

Kneading Block & Disk Transition Screw Element
Deep groove transfer element Screw element for side feeder

1-flighted 2-flighted 3-flighted screw elements

based on many years experience supplying the following:

* Competitive costs per unit of production

* Fast turn round for collection and delivery on refurbished parts

* Parts available from stock for a wide range of extruder makes

* Comprehensive inspection procedure on all parts prior to dispatch

* A time proven quality service

* Latest manufacturing techniques and metallurgy, ensuring consistent and reliable performance of parts

* Customized solutions to meet specific needs.

We manufacture screw shafts for co-rotating twin screw extruders ranging from 10 mm to 120 mm /Length 500-900mm and over.
With cooling system /without cooling system. Our manufacturing specializes in shafts for twin screw extruders and is optimized for flexible order handling.

Types of shaft:
Single keyway Square keyslot High torque key button Dual keyslot
Involute inner spline Round keyslot Retackle spline Client requirements available

Material choice:
WR15E WR30 40CrNiMo

			Ralloy WR15E
			WR30
			40CrNiMo

			Ralloy WR15E is a chromium-molybdenum-vanadium-slloyed steel which is characterized by:
			Ralloy WR30 is a high pressure nitriding iron-based Cr-Mo alloy Which is characterized by
			40CrNiMo i a kind of alloy constructional steel.

			- Excellent tensile strength combined with good toughness
			-Superior corrosion resistance

			-High thermal stability, high resistant to thermal shocks
			-Excellent machinablity

			-Good high-temperature strength
			-High dimensional stablity after heat treatment.

			-Good machinability and polishablity
			-Excellent grinding and polishing ability to obtain optimal surface quality

			-Excellent through-hardening properties
			-High durability by maximun hardness under static and dynamic demands

			-Good dimensional stability during hardening.
			-Good wear resistance

			-High temper resistance up to 500 °C

Products Show

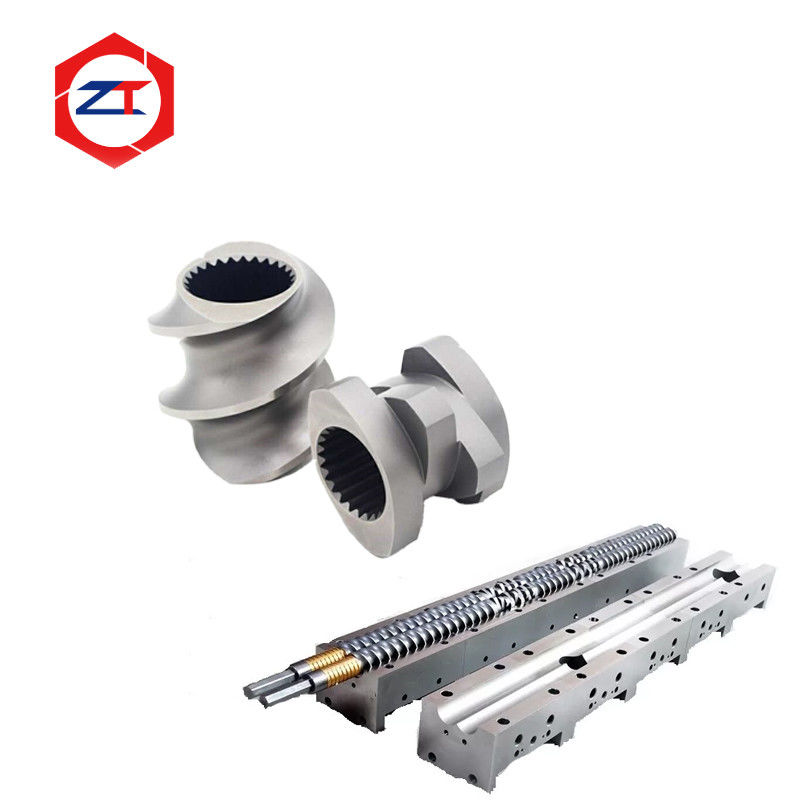

W6Cr5Mo4V2 Kneading Block Involute Spline Extruder Screw Elements In Heating Element 7

Company Profile.

NANJING ZHITIAN is specialized in the manufacturing of replacement parts for twin screw extruder. So for has more than 20 years experience. Manufacturing gearboxes ,barrels and screw elements of twin screw extruder.We also provide you the refurbishment service for gearboxes and barrels.
My company with strong technical force, excellent processing equipment, advanced production technology, strict inspection system and perfect after-sales service, praised by customers. Since my company's products have been mature application in Leistritz,Coperion, Berstorff, JSW, Toshiba, Jwell, Steer and other well-known brands.
All ZT keep pay attention to every step of the details,we are looking forward to the forge ahead together with you!

Packing&Delivery

Packing Details: According to your order quantity packaging,shipping wooden boxes,air carton.
Delivery Details: 5-60days after order.


1.Rust-proof oil processing, Prevent rust in transit.	2.Oiled paper packages, Prevent oil dry.	3.Bubble wrap package, Prevent collosions.

4.Special foam packaging.	5.Packing	6.Sealing

FAQ

How long does it take to get my products since I paid for them?
---According to yout order quantity,we will give you a reasonable delivery date.

Can I get the warranty of one year for free?
---If you need the warranty,you should pay for it.If not,do not worry ,we have confidence in our products.

How long will your product last?
---I am sorry that I can not accurately answer your question,which is quite different from your operation time,materials and materials.

How is your after-sale service?
---You will get our help in time as long as you find something wrong about our produces.Believe us,you deserve the best.
