71mm Rotor Screw Element for Twin Screw Extruder Mixing Sections

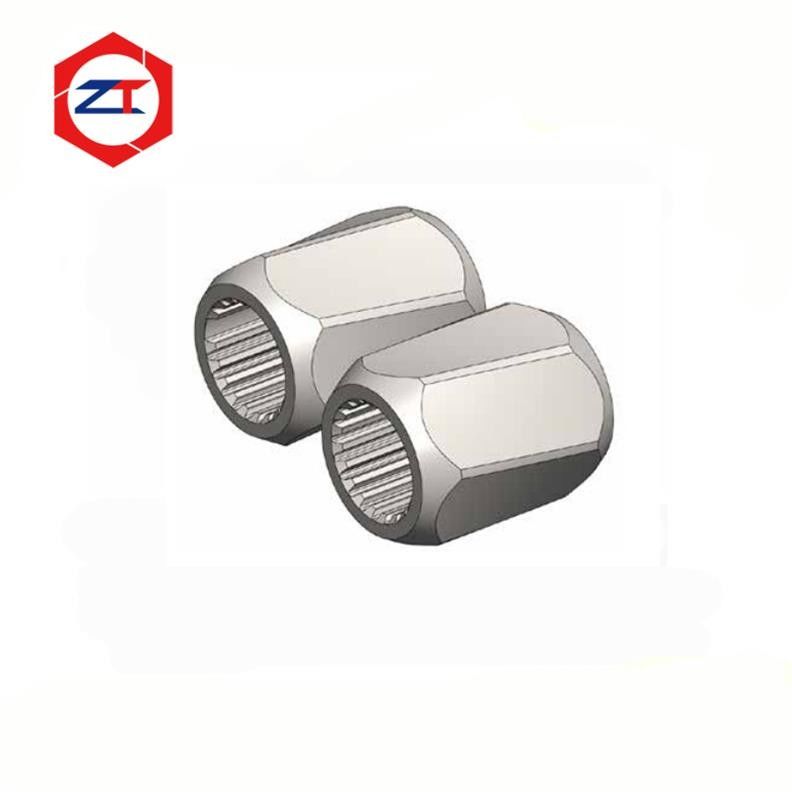

ZHITIAN supplies 71mm rotor screw elements for replacement and custom manufacturing projects involving twin screw extruder mixing sections. The featured element uses W6Mo5Cr4V2 / 6542 material, with the rotor profile, overall length, internal spline, and mating dimensions manufactured according to an approved drawing or confirmed sample assessment.

This product is intended for customers sourcing a defined rotor element within an existing screw arrangement. The 71mm outside diameter identifies the featured size, while the remaining geometry must be checked against the machine and the required component specification.

The supply objective is to reproduce the approved rotor geometry and mounting interface for the designated mixing position.

A mixing section can contain components with different geometries and functions. Identifying a component simply as a “mixing element" is therefore insufficient for manufacturing a replacement.

For this rotor screw element, the reference drawing should define the working contour, axial geometry, orientation, and interfaces. These details establish which component is required and how it belongs within the screw arrangement.

For an existing production line, customers should provide the element designation and its position in the assembly. Where a revised rotor design is requested, the proposed change should be reviewed separately from a replacement made to the original specification.

A product name or outside diameter alone does not establish mixing performance. Requirements concerning dispersion, shear, or material retention need to be considered in the context of the complete process.

The listed specifications describe the featured product. Compatibility with a particular extruder model requires verification of the complete component geometry and shaft interface.

The outside diameter is an important identification dimension, but additional information is needed to define the rotor element accurately.

Please provide or confirm:

• Rotor working profile and relevant cross-sectional dimensions

• Overall element length and axial features

• Internal spline or bore geometry

• Orientation of the working profile relative to the internal interface

• End-face features and mating dimensions

• Element position and neighboring components in the screw arrangement

Where a drawing includes reference angles, profile sections, or special tolerances, these should be retained in the manufacturing specification.

A replacement should be identified by its complete geometry rather than by diameter alone. This is particularly useful when several different mixing components are used on the same production line.

The featured rotor element is specified in W6Mo5Cr4V2, also referred to as 6542. The material designation should remain consistent across the quotation, technical specification, and relevant order documents.

Heat treatment, hardness acceptance, and finishing requirements are confirmed before manufacturing. These requirements should correspond to the selected material and approved component specification.

If the existing element has suffered unusual wear, corrosion, or breakage, please provide photographs and operating information during the enquiry. This allows the replacement request to be reviewed with the failure history in view.

Alternative materials may be discussed, but substitutions require technical confirmation. Keeping the same outside dimensions does not make different materials automatically equivalent.

An approved drawing provides the clearest reference for manufacturing because it defines the intended geometry and acceptance requirements.

When an original drawing is unavailable, an existing sample can be assessed together with machine information, shaft data, and the screw arrangement. Photographs are useful for initial identification, but they may not provide sufficient dimensional information for production.

A used rotor element may have lost part of its original working contour. Wear-affected surfaces should therefore be evaluated before the final manufacturing geometry is established.

Where sample data is incomplete, additional measurements or reference information may be required. Production proceeds against the resulting confirmed specification.

Inspection focuses on the features specified in the approved drawing. Depending on the order requirements, checks can include:

• Outside diameter and overall length

• Rotor contour and specified profile dimensions

• Internal spline or bore dimensions

• Profile orientation relative to the mounting interface

• End-face dimensions and surface condition

• Hardness where specified

Customers requiring inspection records should identify the critical features and report format during quotation. Material documentation, identification marking, and packing requirements can also be agreed for the order.

Is this rotor element interchangeable with a kneading block?

It should not be treated as a direct substitute. Replacement requires confirmation of the component geometry and its intended position in the approved screw arrangement.

Does the rotor element guarantee self-cleaning or residue-free operation?

No such guarantee is included in this product specification. Cleaning and material-retention requirements need to be evaluated for the actual geometry, assembly, and operating conditions.

Will a 71mm rotor element fit every extruder with the same screw diameter?

No. Length, rotor profile, internal interface, orientation, and mating dimensions must also match the required specification.

Can I order an individual replacement element?

Individual supply can be discussed against the confirmed drawing and quantity. Please provide the element designation or assembly position so that the required component can be identified.
