| Place of Origin: | CHINA |
| Brand Name: | ZHITIAN |
| Model Number: | 103 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | consult with |
| Packaging Details: | Wooden Box |
| Delivery Time: | 30-60 days |
| Payment Terms: | T/T |
| Supply Ability: | 600 Pieces/Month |
| Material: | 45#+6542 | Dimension(L*W*H）: | 505mm*400mm*400mm |
|---|---|---|---|
| Hole Diameter: | 101.8mm | Center Distance: | 81mm |
| Color: | Metal | Experience: | 20 Years |
| Wear: | High Wear-resistant | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Certification: | ISO9001 |
| High Light: | Food Extruder Screw And Barrel,6542 Extruder Screw And Barrel,45 Food Extruder Spare Parts |
||

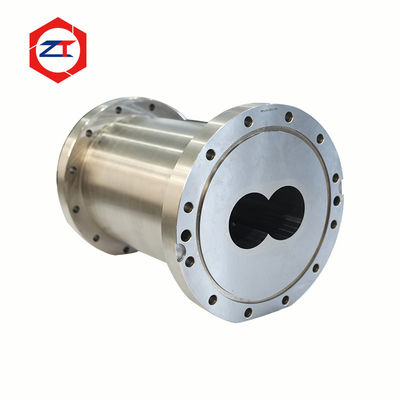

According to appearance design, it can be divided into close barrel, open barrel and venting barrel. According to the liner, it can be divided into integrated barrel (without liner) and with liner barrel. Diameter: 15-350mm Material: Company adopts imported HIP process of powder high speed steel, and precision CNC machining of the cylinder is adopted to make its accuracy level, wear-resisting and corrosion resistance be consistent with the origin first-line brand abroad; Cost performance is superior to the similar imported products.
We can satisfy your different material needs:
According to appearance design,Closed Barrel,Feeder Barrel,Side Feeder Barrel,Venting Barrel,Combi Barrel.
According to the liner,With liner barrel,Without liner barrel.
According to Materical,
-For wear application:C liner;Cr26；Cr12MoV;W6Mo5Cr4V2;
-For corrosion application:38CrMoAla;Hac alloy;
-For wear and corrosion application:Nickel based alloy;316L,304;WR13,SAM26etc.
Through the understanding of customers,recommend the most valuable material.
Using machining center finishing, reasonable processing technology, advanced testing equipment, to ensure that the processing accuracy of each product.
Twin-screw extruder screw element:
- convenient interchangeability by agile combination.
- fulfill efficient self-cleaning, transmission, compounding, pressure-forming and etc.
- made of high speed tool steel W6Mo5Cr4V2, or anti-corrosion steel 38CrMoAlA by speed treatment.
The flexible modular principle is realized with screw barrel sections from the wide range of different designs possible. Fast, intensive and uniform heating of the screw barrel section is ensured by electrical heaters. The barrel sections are cooled with water by means of an internal bore system with bores arranged close to the inside barrel wall.
Barrel Dimensions
|
Screw Barrel Specifications Table
|
||||
| NO. | Model | L*D*D(MM) | Hole Diameter/Φ(MM) | Center Distance/CD(MM) |
| 1 | 103 | 505*400*400 | Φ101.8 | 81 |
Packaging
|
|
|
|
All ZT keep pay attention to every step of the details,We are looking forward to the forge ahead together with you!
|
||
