Product Details
Place of Origin: CHINA
Brand Name: ZHITIAN
Model Number: 75
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: consult with
Packaging Details: Wooden Box
Delivery Time: 30-60 days
Payment Terms: T/T
Supply Ability: 600 Pieces/Month
Material: |
W6Mo5Cr4V2 |
Color: |
Metal |
Wear: |
High Wear-resistant |
Experience: |
20 Years |
Application: |
Plastic Industry |
Screw Design: |
Screw Segment |
For What Machine: |
Extrusion Machine |
Material: |
W6Mo5Cr4V2 |
Color: |
Metal |
Wear: |
High Wear-resistant |
Experience: |
20 Years |
Application: |
Plastic Industry |
Screw Design: |
Screw Segment |
For What Machine: |
Extrusion Machine |
Experience Excellence in Twin Screw Extruder Screw Elements
We can satisfy your different material needs:
According to appearance design,Closed Barrel,Feeder Barrel,Side Feeder Barrel,Venting Barrel,Combi Barrel.
According to the liner,With liner barrel,Without liner barrel.
According to Materical,
-For wear application:C liner;Cr26；Cr12MoV;W6Mo5Cr4V2;
-For corrosion application:38CrMoAla;Hac alloy;
-For wear and corrosion application:Nickel based alloy;316L,304;WR13,SAM26etc.
Quick Details

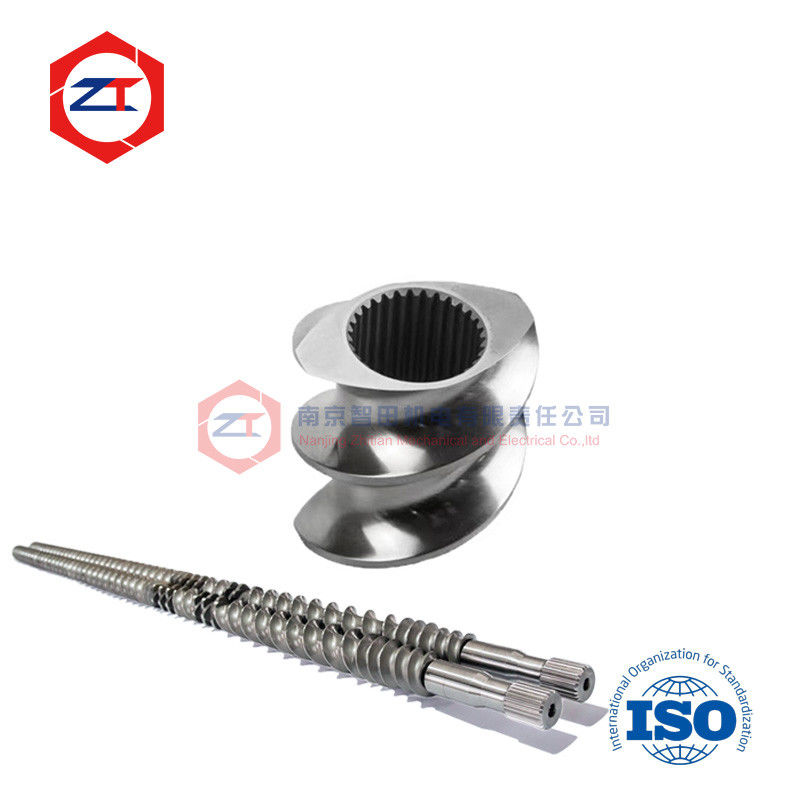

Product Name:W6Mo5Cr4V2 Extrusion Screw Manufacturer Twin Screw Extruder Spare Parts Screw Elements
Color: Metal
Packaging: Wooden Box
Lead Time: 30-60 days
Through the understanding of customers,recommend the most valuable material.
Barrel Dimensions
|
Screw Barrel Specifications Table
|
||||
| NO. | Model | L*W*H(MM) | Hole Diameter/Φ(MM) | Center Distance/D(MM) |
| 1 | 20 | 132*115*105 | Φ23 | 18.4 |
| 2 | 30 | 120*135*115 | Φ30.6 | 26 |
| 3 | 35 | 140*140*120 | Φ36 | 30 |
| 4 | 36 | 150*160*140 | Φ36 | 30 |
| 5 | 40 | 160*175*145 | Φ41.6 | 34.5 |
| 6 | 50 | 190*190*150 | Φ51 | 42 |
| 7 | 52 | 210*200*155 | Φ52 | 43 |
| 8 | 53 | 220*210*160 | Φ53.3 | 48 |
| 9 | 58 | 240*220*175 | Φ58 | 48 |
| 10 | 60 | 240*210*170 | Φ60 | 52 |
| 11 | 65 | 240*210*170 | Φ63 | 52 |
| 12 | 75 | 290*260*200 | Φ71.8 | 60 |
| 13 | 85 | 320*280*215 | Φ81.9 | 67.8 |
| 14 | 92 | 360*310*240 | Φ92 | 78 |
| 15 | 95 | 360*310*240 | Φ94 | 78 |
| 16 | 110 | 420*330*240 | Φ109 | 91.5 |
| 17 | 125 | 500*390*290 | Φ125 | 98 |
| 18 | 135 | 520*440*340 | Φ134 | 110 |
Production Process
1.Workblank
According to your request,Customing workblank,Adopts the high hardness 45# steel or 6542 steel.
2.Rough Machining
Many sets of advanced processing equipment,shape of inner hole channel of rough machining peocessing.
To complete your request.
3.Finish Machining
Try the water cycle,after testing process for each working procedure.
Higher precision,only you.
4.Barrel Inspection
High-end testing equipment and instruments,inspection,test center distance,appearance size,hole,etc.
Paper issued by the quality inspection report for your inspection.
5.Delivery
Standard export packing
To product antirust processing,and then use the paper package,bubble,fixed in the wooden case,after confirm the delivery.
FAQ
How long does it take to get my products since I paid for them?
---According to yout order quantity,we will give you a reasonable delivery date.
Can I get the warranty of one year for free?
---If you need the warranty,you should pay for it.If not,do not worry ,we have confidence in our products.
Are yuo responsible for the assembly?
---We will provide this service at your requst.
How is your after-sale service?
---You will get our help in time as long as you find something wrong about our produces.Believe us,you deserve the best.
