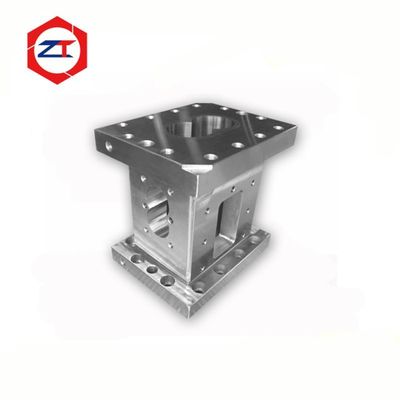

75mm Double Screw Sheet Extruder Machine Parts Barrel ,PE Pipe Extruder Machine 45#+Cr26/6542/Cr12Mov

Product Details

Place of Origin: CHINA

Brand Name: ZHITIAN

Model Number: 75

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: consult with

Packaging Details: Wooden Box

Delivery Time: 30-60 days

Payment Terms: T/T

Supply Ability: 600 Pieces/Month

Get Best Price
Highlight:

twin screw extruder parts

,

lab twin screw extruder spares

Material:
45#+Cr26/6542/Cr12Mov
Dimension(L*W*H):
290mm*260mm*200mm
Hole Diameter:
Φ71.8mm
Center Distance:
60mm
Color:
Metal
Wear:
High Wear-resistant
Experience:
20 Years
Weight:
50KG
Material:
45#+Cr26/6542/Cr12Mov
Dimension(L*W*H):
290mm*260mm*200mm
Hole Diameter:
Φ71.8mm
Center Distance:
60mm
Color:
Metal
Wear:
High Wear-resistant
Experience:
20 Years
Weight:
50KG
75mm Double Screw Sheet Extruder Machine Parts Barrel ,PE Pipe Extruder Machine 45#+Cr26/6542/Cr12Mov



Quick Details



Product Name:75mm High Wear Barrel Of Extruder Machine Parts 45#+Cr26/6542/Cr12Mov Material

Material: 45#+Cr26/6542/Cr12Mov

Color: Metal

Packaging: Wooden Box

Lead Time: 30-60 days



Product Description



We can satisfy your different material needs:

According to appearance design,Closed Barrel,Feeder Barrel,Side Feeder Barrel,Venting Barrel,Combi Barrel.

According to the liner,With liner barrel,Without liner barrel.

According to Materical,

-For wear application:C liner;Cr26;Cr12MoV;W6Mo5Cr4V2;

-For corrosion application:38CrMoAla;Hac alloy;

-For wear and corrosion application:Nickel based alloy;316L,304;WR13,SAM26etc.



Through the understanding of customers,recommend the most valuable material.



Barrel Dimensions

75mm Double Screw Sheet Extruder Machine Parts Barrel ,PE Pipe Extruder Machine 45#+Cr26/6542/Cr12Mov 0





Screw Barrel Specifications Table



NO. Model L*W*H(MM) Hole Diameter/Φ(MM) Center Distance/D(MM)
1 20 132*115*105 Φ23 18.4
2 30 120*135*115 Φ30.6 26
3 35 140*140*120 Φ36 30
4 36 150*160*140 Φ36 30
5 40 160*175*145 Φ41.6 34.5
6 50 190*190*150 Φ51 42
7 52 210*200*155 Φ52 43
8 53 220*210*160 Φ53.3 48
9 58 240*220*175 Φ58 48
10 60 240*210*170 Φ60 52
11 65 240*210*170 Φ63 52
12 75 290*260*200 Φ71.8 60
13 85 320*280*215 Φ81.9 67.8
14 92 360*310*240 Φ92 78
15 95 360*310*240 Φ94 78
16 110 420*330*240 Φ109 91.5
17 125 500*390*290 Φ125 98
18 135 520*440*340 Φ134 110



Production Process



75mm Double Screw Sheet Extruder Machine Parts Barrel ,PE Pipe Extruder Machine 45#+Cr26/6542/Cr12Mov 1



Workblank





According to your request,Customing workblank,Adopts the high hardness 45# steel and high quaily 38CrMoAla.



Rough Machining




Many sets of advanced processing equipment,shape of inner hole channel of rough machining peocessing.
To complete your request.

75mm Double Screw Sheet Extruder Machine Parts Barrel ,PE Pipe Extruder Machine 45#+Cr26/6542/Cr12Mov 2
75mm Double Screw Sheet Extruder Machine Parts Barrel ,PE Pipe Extruder Machine 45#+Cr26/6542/Cr12Mov 3



Finish Machining




Try the water cycle,after testing process for each working procedure.
Higher precision,only you.



Barrel Inspection




High-end testing equipment and instruments,inspection,test center distance,appearance size,hole,etc.
Paper issued by the quality inspection report for your inspection.

75mm Double Screw Sheet Extruder Machine Parts Barrel ,PE Pipe Extruder Machine 45#+Cr26/6542/Cr12Mov 4
75mm Double Screw Sheet Extruder Machine Parts Barrel ,PE Pipe Extruder Machine 45#+Cr26/6542/Cr12Mov 5



Delivery




Standard export packing
To product antirust processing,and then use the paper package,bubble,fixed in the wooden case,after confirm the delivery.





Packaging

75mm Double Screw Sheet Extruder Machine Parts Barrel ,PE Pipe Extruder Machine 45#+Cr26/6542/Cr12Mov 6 75mm Double Screw Sheet Extruder Machine Parts Barrel ,PE Pipe Extruder Machine 45#+Cr26/6542/Cr12Mov 7 75mm Double Screw Sheet Extruder Machine Parts Barrel ,PE Pipe Extruder Machine 45#+Cr26/6542/Cr12Mov 8



All ZT keep pay attention to every step of the details,We are looking forward to the forge ahead together with you!





OUR COMPANY



75mm Double Screw Sheet Extruder Machine Parts Barrel ,PE Pipe Extruder Machine 45#+Cr26/6542/Cr12Mov 9

NANJING ZHITIAN is specialized in the manufacturing of Replacement Parts for Twin Screw Extruder. We have two subsidiaries : ZHITIAN JIDIAN,ZHITIAN XINGYE ,manufacturing Barrels,Gearboxes,Overall Liners for Twin Screw Extruder. We also provide you the refurbishment service for barrels and Gearboxes.In addition to providing high quality spare parts for domestic twin screw models,we can offer the replacement parts for a variety of twin screw extruders made in Europe ,America ,Japan ,Korea ,etc.





My company with strong technical force,excellent processing equipment,advanced production technology,strict inspection system and perfect after-sales service,praised by customers.Since my company's products have been mature application in Leistritz,Coperion,Berstorff,JSW,Toshiba,Jwell,Steer and other well-known brands.





All ZT keep pay attention to every step of the details,we are looking forward to the forge ahead together with you!

75mm Double Screw Sheet Extruder Machine Parts Barrel ,PE Pipe Extruder Machine 45#+Cr26/6542/Cr12Mov 10



FAQ



How long will your product last?

---I am sorry that I can not accurately answer your question,which is quite different from your operation time,materials and materials.



Are your quotations all FOB?

---Yes



Can I get the warranty of one year for free?

---If you need the warranty,you should pay for it.If not,do not worry ,we have confidence in our products.



How is your after-sale service?

---You will get our help in time as long as you find something wrong about our produces.Believe us,you deserve the best.
