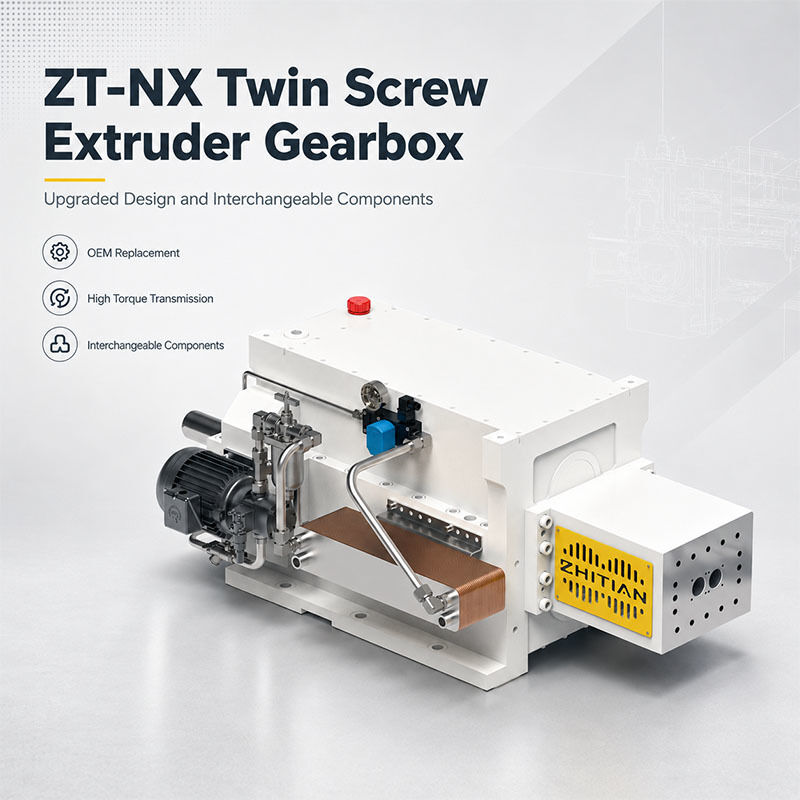

The ZT-NX twin screw extruder gearbox is an upgraded development of the ZT-N series for co-rotating twin screw extrusion lines. It is designed for customers who need the proven <13 Nm/cm³ torque-density class of the ZT-N platform while seeking a simpler structure, improved component commonality and a more cost-effective gearbox solution.

Rather than increasing specifications that may not be required for every extrusion line, ZT-NX focuses on improving the cost-to-performance balance. The housing and internal structure have been simplified to reduce machining complexity and overall manufacturing cost, while key transmission components are designed for interchangeability.

What Problems Does the ZT-NX Solve?

Customers replacing or upgrading an existing gearbox often face several practical problems:

• The current ZT-N torque level is sufficient, but replacement cost needs to be optimized.
• A higher torque-density gearbox would add unnecessary cost for the actual process requirement.
• Complex gearbox structures increase manufacturing and maintenance difficulty.
• Different gearbox versions create more spare-part inventory.
• Motor power alone does not provide enough information for correct gearbox selection.
• An older extrusion line requires a gearbox that matches its existing output speed, center distance and installation interfaces.

The ZT-NX addresses these issues by maintaining the established ZT-N performance class while simplifying the design and improving the commonality of key transmission components.

Cost-Effective Upgrade from the ZT-N Series

The core value of the ZT-NX twin screw extruder gearbox is not simply higher performance.

ZT-NX retains a torque density of <13 Nm/cm³, while the redesigned housing and more rational internal structure reduce manufacturing complexity. This creates a more competitive solution for extrusion lines that do not require a higher torque-density gearbox.

Key features include:

• Upgraded design based on the ZT-N series
• Torque density maintained below 13 Nm/cm³
• Simplified housing structure
• Reduced machining difficulty
• Lower overall manufacturing cost
• Fully interchangeable key transmission components
• Load-splitting transmission design
• High-performance material for the high-torque output shaft
• Bearings from globally recognized brands
• QT450 ductile iron housing

For customers whose existing torque requirement is already satisfied by the ZT-N class, ZT-NX provides a more rational upgrade without unnecessary over-specification.

Interchangeable Key Components for Easier Maintenance

A major ZT-NX upgrade is the interchangeability of key transmission components.

For users operating multiple extrusion lines, improved component commonality can help simplify spare-part planning, reduce inventory complexity and make future maintenance more convenient.

This should not be interpreted as universal interchangeability of every ZT-N component. Actual compatibility should be confirmed according to the gearbox model and configuration.

ZT-NX Series Motor Power Selection

The ZT-NX series currently covers ZT50NX to ZT95NX, with center distances from 42 to 78 mm. The following values are based on a reference input speed of 1500 r/min. The listed motor powers are the maximum applicable rated powers under the corresponding ratio and output-speed conditions.

Torque Density: <13 Nm/cm³
Reference Input Speed: 1500 r/min

Select by Torque, Speed and Ratio — Not Motor Power Alone

A co-rotating twin screw extruder gearbox should not be selected only according to motor kW.

The same gearbox model can correspond to different maximum motor powers depending on output speed and ratio. For example, ZT65NX is rated differently at 300, 500, 600 and 900 rpm.

Correct selection should consider:

• Motor power and input speed
• Required screw output speed
• Gear ratio
• Torque requirement
• Continuous operating load
• Process load fluctuation
• Existing machine interfaces

This helps prevent under-sizing while also avoiding unnecessary gearbox over-specification.

ZT-NX for Twin Screw Extruder Gearbox Replacement

For a twin screw extruder gearbox replacement project, mechanical compatibility is as important as torque capacity.

The existing gearbox should be evaluated for:

• Output-shaft center distance
• Input and output speed
• Gear ratio
• Shaft or coupling interface
• Mounting dimensions
• Lubrication arrangement
• Cooling requirements
• Actual operating load

ZT-NX can be evaluated as a replacement or upgrade solution where the required torque-density class remains below 13 Nm/cm³ and the existing co-rotating extrusion line can be matched mechanically.

Reliable Drive Design for Co-Rotating Twin Screw Extruders

As a co-rotating twin screw extruder gearbox, ZT-NX combines a load-splitting transmission structure, high-performance output shaft, branded bearings and QT450 ductile iron housing.

The objective is to provide a practical balance of transmission capability, manufacturing efficiency, maintenance convenience and overall cost.

Information Required for Selection

Please provide:

• Existing gearbox model
• Motor power and input speed
• Required screw output speed
• Gear ratio
• Output-shaft center distance
• Coupling or spline interface
• Operating load
• Existing gearbox problem
• Mounting dimensions
• Lubrication and cooling configuration

FAQ

Is ZT-NX a higher torque-density gearbox than ZT-N?

No. ZT-NX maintains the <13 Nm/cm³ torque-density class. Its upgrade focuses on structure, manufacturability, component commonality and cost efficiency.

Why is ZT-NX more cost-effective?

The simplified housing and internal structure reduce machining difficulty and overall manufacturing cost while maintaining the required performance class.

Can ZT-NX be used for twin screw extruder gearbox replacement?

Yes. The existing center distance, output speed, ratio, shaft interface, mounting dimensions and operating load should be confirmed before selection.

Can I select a ZT-NX model only by motor power?

No. Motor power must be evaluated together with output speed, ratio and torque requirement.

Request a ZT-NX Replacement and Upgrade Review

Send us your existing gearbox model, motor data, output speed and installation dimensions.

We can help evaluate whether the ZT-NX twin screw extruder gearbox is suitable for your replacement or upgrade project and select the appropriate model and ratio.
