Custom Twin Screw Extruder Screw Elements for Complete Screw Configurations

A complete twin screw extruder screw configuration requires different types of elements working together. From material conveying and melting to mixing, venting and pressure development, each processing section has specific requirements for screw geometry, material selection and assembly accuracy.

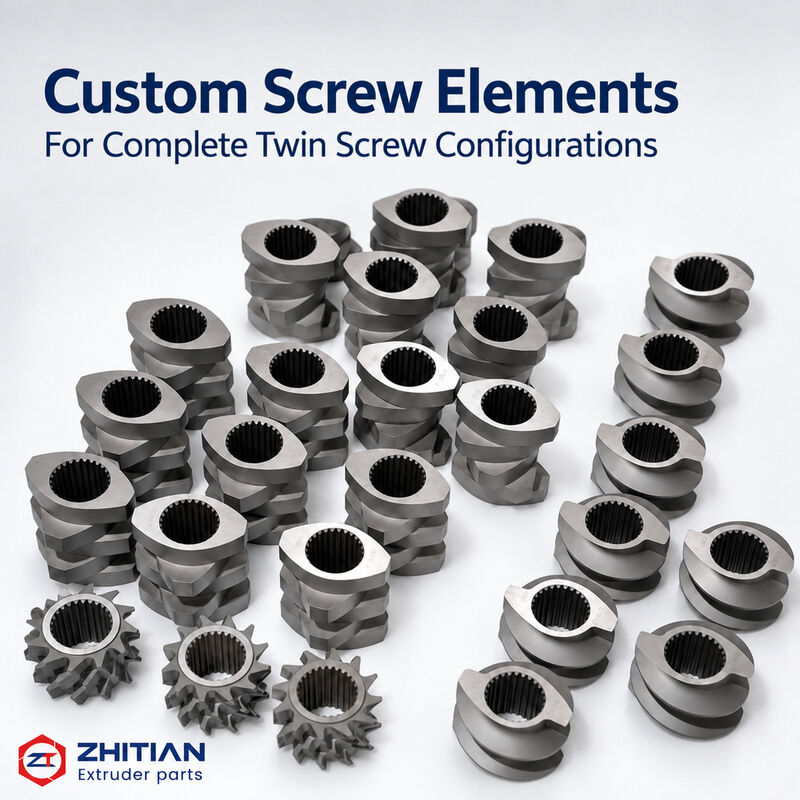

ZHITIAN provides custom twin screw extruder screw elements for complete screw configurations, including conveying elements, kneading blocks, mixing elements, reverse elements and transition components.

Our manufacturing service supports individual element replacement, multiple worn-section replacement and complete screw-element sets according to existing drawings, samples or verified dimensions.

The objective is to help extrusion operators maintain the required screw configuration while selecting appropriate geometries, materials and replacement specifications for their processes.

Different screw elements perform different functions along the extrusion process.

ZHITIAN supplies a range of element types for co-rotating twin screw extrusion systems.

A complete screw configuration is not determined by selecting one type of element alone.

The profile, pitch, element length, installation sequence and material must be considered together to maintain the intended process behavior.

Twin screw extrusion processes have different requirements depending on the polymer, filler, additive and final product.

For example, mineral-filled compounds may require particular attention to abrasive wear, while glass fiber reinforced materials require a balance between mixing and excessive fiber breakage.

Heat-sensitive materials may require careful control of unnecessary shear heating. Other formulations may need additional mixing or conveying capacity in specific processing sections.

ZHITIAN supports customized screw elements for applications including:

• Engineering plastic compounding

• Masterbatch production

• Mineral-filled polymers

• Glass fiber reinforced materials

• Polymer modification and blending

• Selected chemical and specialty material processing

When the original screw configuration is already working satisfactorily, accurate replacement may be more appropriate than changing the element geometry.

When processing conditions have changed, individual positions can be reviewed before considering modifications to the complete screw configuration.

Different elements in the same screw assembly may experience significantly different operating conditions.

Conveying sections, kneading zones and high-filler processing positions do not always experience the same levels of abrasion, corrosion or mechanical loading.

Available material options include:

Material selection should be based on the actual processing media, filler content, operating temperature, wear mechanism and mechanical requirements.

A higher-cost material is not automatically the best choice for every screw element.

For many extrusion lines, selective material upgrades at critical positions may be more practical than manufacturing the complete screw set from the same premium alloy.

When multiple screw elements are installed along one shaft, dimensional consistency becomes essential.

Even when individual elements appear correct, differences in length, end-face geometry or internal connections can affect the complete assembled screw stack.

Important manufacturing and inspection parameters include:

• Outside diameter and working profile

• Element length and dimensional tolerance

• Internal spline geometry

• End-face accuracy

• Pitch and transition geometry

• Material and heat-treatment requirements

• Compatibility with neighboring elements

ZHITIAN manufactures screw elements according to approved drawings and dimensional requirements, with inspection focused on the functional surfaces and interfaces needed for assembly.

For OEM replacement applications, the objective is to reproduce the required geometry and fit rather than simply match the nominal screw diameter.

Not every extrusion line requires a completely new screw set when wear occurs.

In modular twin screw systems, some positions may experience more severe wear than others.

Where the shaft, barrel and remaining screw elements are suitable for continued service, individual worn elements or specific processing sections can be evaluated for replacement.

For larger maintenance projects, complete screw-element sets can also be supplied according to the existing screw configuration.

A complete replacement request should include the element sequence, individual dimensions and internal connection requirements.

This allows the replacement components to be checked as an assembly rather than treated as unrelated parts.

Customers do not always have complete original manufacturing drawings, particularly for older extrusion systems.

ZHITIAN supports replacement evaluation based on available technical drawings, samples and measured dimensions.

Where worn samples are used, the original functional geometry should be distinguished from surfaces that have already experienced service wear.

This is particularly important for screw flights, spline interfaces and end faces.

If a customer intends to change the original screw configuration, the proposed modifications should also be evaluated against the actual processing requirements.

With more than 20 years of experience in twin screw extruder component manufacturing, ZHITIAN provides screw-element production supported by machining, material selection, inspection and replacement services.

Our capabilities include:

• Manufacturing of multiple screw-element geometries

• Custom dimensions and internal connection profiles

• Wear-resistant and corrosion-resistant material options

• Drawing-based production and sample measurement

• Individual element and complete configuration supply

• Dimensional inspection and quality control

By combining component manufacturing with an understanding of screw assembly requirements, we aim to help customers source compatible components for existing twin screw extrusion systems.

Yes. We can manufacture different element types according to an existing screw configuration, including conveying, kneading, mixing, reverse and transition elements. Drawings or an element sequence are recommended for accurate replacement.

Yes. Material selection can vary between positions depending on abrasion, corrosion and operating conditions, subject to dimensional and mechanical compatibility.

In many modular twin screw systems, individual worn elements can be replaced when the remaining components are suitable for continued use and the replacement dimensions are correctly matched.

Existing samples and measured dimensions can be used for evaluation. However, worn surfaces must be identified before the final manufacturing geometry is established.

Individual element geometry or material changes can be evaluated according to the processing requirements. Changes should consider the entire screw configuration rather than one component in isolation.

Whether you require individual replacement elements, several worn sections or a complete twin screw extruder screw-element set, ZHITIAN can review the available specifications and manufacturing requirements.

For an initial evaluation, please provide the extruder model, screw diameter, element drawings or samples, existing configuration and processed materials.

Send Your Screw Configuration or Element Drawings for Technical Review.
