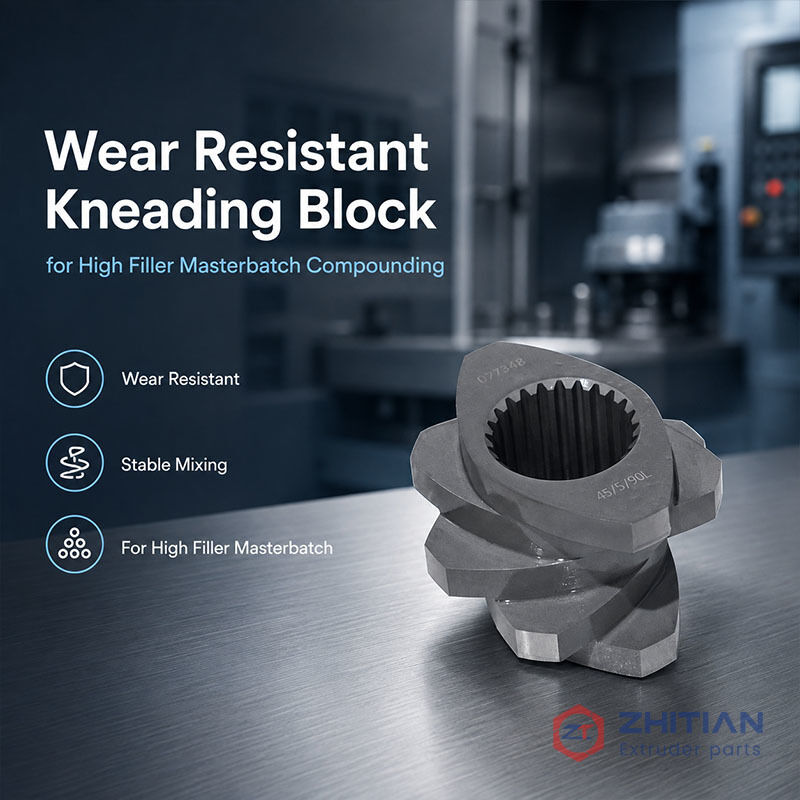

Abrasion Resistant Kneading Block for Mineral Filled Polymer Compounding with W6Mo5Cr4V2 Material

This abrasion resistant kneading block is designed for twin screw extruder applications where mineral fillers create severe wear during mixing and dispersion.

In mineral filled polymer compounding, the kneading block is exposed to continuous abrasive contact from fillers such as calcium carbonate, talc, mica and other hard mineral particles. As the disc edges and working surfaces wear, the original mixing geometry changes, which can affect dispersion, shear behavior and overall process stability.

This kneading block is intended to improve wear resistance while maintaining reliable mixing performance in abrasive compounding conditions.

It helps reduce problems such as:

• Rapid wear of kneading discs and edges
• Loss of original kneading geometry
• Reduced mixing consistency
• Changes in shear and dispersive performance
• Short service life in abrasive formulations
• Frequent replacement of high-wear kneading sections

Mineral fillers are widely used to lower cost or improve stiffness, dimensional stability and other compound properties.

However, these fillers also increase abrasive load in the screw mixing section.

Unlike a conveying element, a kneading block works in a more intensive mixing area where material is repeatedly compressed, sheared and redistributed. In this zone, mineral particles continuously act on:

• Disc edges
• Working faces
• Barrel-adjacent surfaces
• Intermeshing material flow between screw shafts

This repeated abrasive action gradually removes material from the kneading discs.

Wear becomes more severe when the process involves:

• High filler content
• Hard mineral particles
• High screw speed
• Strong dispersive mixing
• High throughput
• Continuous long-cycle production

As the disc geometry changes, the mixing effect of the kneading block also changes.

The performance of a kneading block depends on its geometry.

When the disc profile becomes worn, the element may no longer generate the intended mixing and dispersive action.

Possible effects include:

• Lower dispersive efficiency
• Less stable filler distribution
• Changes in local shear intensity
• Variations in residence time
• Reduced process repeatability
• Lower consistency of the compounded material

For this reason, a kneading block for mineral filled polymer compounding should be selected not only for initial function, but also for its ability to maintain geometry over time under abrasive conditions.

Important selection factors include:

• Filler type
• Filler percentage
• Particle size
• Polymer system
• Screw speed
• Throughput
• Position of the kneading block in the screw configuration
• Expected operating cycle

W6Mo5Cr4V2 is a practical wear-resistant material for many mineral-filled mixing applications.

It can provide improved wear resistance compared with more conventional materials and is suitable for many kneading positions under abrasive service.

For more severe mineral-filled formulations, selected powder metallurgy materials can be considered.

These materials can offer a different balance of:

• Wear resistance
• Hardness
• Carbide distribution
• Toughness
• Service life

The best material should be selected according to the actual filler system and processing condition rather than by hardness alone.

Not all parts of the screw configuration wear at the same rate.

More severe kneading-block wear may appear in:

• High-filler mixing zones
• Sections after filler introduction
• Intensive dispersive mixing positions
• Pressure-building sections before venting or conveying transitions
• Long-cycle continuous compounding lines

For this reason, it is not always necessary to upgrade every element in the full screw set.

Higher-performance material can be concentrated in the kneading positions that experience the greatest abrasive load.

This approach helps improve service life while controlling replacement cost.

A replacement kneading block must match both the shaft connection and the intended screw arrangement.

Critical features include:

• Outside diameter
• Block width
• Number of discs
• Disc thickness
• Stagger arrangement
• Internal spline or keyway
• Fit with adjacent elements

If the geometry is incorrect, the kneading block may alter the original mixing behavior even if it can be installed on the shaft.

For this reason, replacement production should be based on:

• Original drawing
• Existing sample
• Measured dimensions
• Screw configuration information
• Process requirements

Inspection can include:

• Outside diameter
• Block width
• Disc geometry
• Number of discs
• Internal spline dimensions
• Concentricity
• Surface condition
• Material verification
• Heat-treatment condition
• Fit with inspection gauges

Dimensional records can be retained for repeat orders and future replacement reference.

Please provide:

1. Extruder information
2. Kneading block drawing or sample
3. Processed polymer
4. Mineral filler type
5. Filler percentage
6. Screw speed
7. Approximate throughput
8. Existing kneading block material
9. Current service life
10. Photographs of worn discs
11. Position of severe wear
12. Required quantity

This information helps determine whether the main problem is normal abrasive wear, severe geometry loss or a broader wear issue involving the screw and barrel system.

Send us your formulation, filler percentage, existing kneading block material and photographs of the worn element.

We can help evaluate:

• Which kneading positions are wearing most severely
• Whether the current material is suitable
• Which wear-resistant material is more appropriate
• Whether the barrel condition should also be checked
• Which dimensions must be confirmed before replacement

Send Your Kneading Block Drawing for Technical Review
