| Place of Origin: | CHINA |
| Brand Name: | ZHITIAN |
| Model Number: | 75 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | consult with |
| Packaging Details: | Wooden Box |
| Delivery Time: | 30-60 days |
| Payment Terms: | T/T |
| Supply Ability: | 600 Pieces/Month |

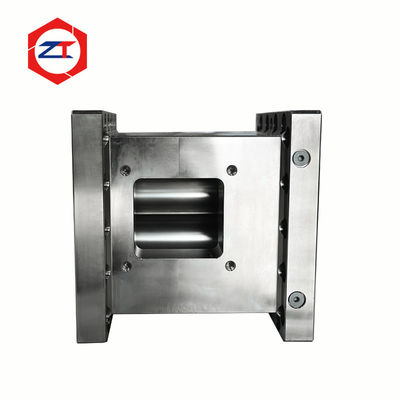

| Material: | 42CrMo+ZT615(HIP Ni60 Based) | Dimension(L*W*H）: | 290mm*284mm*240mm |
|---|---|---|---|
| Hole Diameter: | Φ71.8mm | Center Distance: | 60mm |
| Color: | Metal | Weight: | 50KG |
| Experience: | 20 Years | Wear: | High Wear-resistant |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| High Light: | ZT615 Twin Screw Extruder Parts,42CrMo Twin Screw Extruder Barrels,Metal Twin Screw Extruder Parts |
||
We adopt horizontal CNC, and advanced processing to machine the inner hole and pin hole at one time to ensure the coaxial degree of the barrel within 0.02mm. We use the advanced 3D measuring instrument to control the tolerances of each row of the cylinder.
We can satisfy your different material needs:
According to appearance design,Closed Barrel,Feeder Barrel,Side Feeder Barrel,Venting Barrel,Combi Barrel.
According to the liner,With liner barrel,Without liner barrel.
According to Materical,
-For wear application:C liner;Cr26；Cr12MoV;W6Mo5Cr4V2;
-For corrosion application:38CrMoAla;Hac alloy;
-For wear and corrosion application:Nickel based alloy;316L,304;WR13,SAM26etc.
Through the understanding of customers,recommend the most valuable material.
Barrel Dimensions
|
Screw Barrel Specifications Table
|
||||
| NO. | Model | L*W*H(MM) | Hole Diameter/Φ(MM) | Center Distance/D(MM) |
| 1 | 20 | 132*115*105 | Φ23 | 18.4 |
| 2 | 30 | 120*135*115 | Φ30.6 | 26 |
| 3 | 35 | 140*140*120 | Φ36 | 30 |
| 4 | 36 | 150*160*140 | Φ36 | 30 |
| 5 | 40 | 160*175*145 | Φ41.6 | 34.5 |
| 6 | 50 | 190*190*150 | Φ51 | 42 |
| 7 | 52 | 210*200*155 | Φ52 | 43 |
| 8 | 53 | 220*210*160 | Φ53.3 | 48 |
| 9 | 58 | 240*220*175 | Φ58 | 48 |
| 10 | 60 | 240*210*170 | Φ60 | 52 |
| 11 | 65 | 240*210*170 | Φ63 | 52 |
| 12 | 75 | 290*260*200 | Φ71.8 | 60 |
| 13 | 85 | 320*280*215 | Φ81.9 | 67.8 |
| 14 | 92 | 360*310*240 | Φ92 | 78 |
| 15 | 95 | 360*310*240 | Φ94 | 78 |
| 16 | 110 | 420*330*240 | Φ109 | 91.5 |
| 17 | 125 | 500*390*290 | Φ125 | 98 |
| 18 | 135 | 520*440*340 | Φ134 | 110 |
Packaging
|
|
|
|
All ZT keep pay attention to every step of the details,We are looking forward to the forge ahead together with you!
|
||
