| Place of Origin: | CHINA |
| Brand Name: | ZHITIAN |
| Model Number: | 75 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | consult with |
| Packaging Details: | Wooden Box |
| Delivery Time: | 30-60 days |
| Payment Terms: | T/T |
| Supply Ability: | 600 Pieces/Month |
| Material: | 42CrMo+ZT615(HIP Ni60 Based) | Dimension(L*W*H）: | 290mm*284mm*240mm |
|---|---|---|---|
| Hole Diameter: | Φ71.8mm | Center Distance: | 60mm |
| Color: | Metal | Weight: | 50KG |
| Experience: | 20 Years | Wear: | High Wear-resistant |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| High Light: | Ni60 Based Twin Screw Extruder Parts,Center Distance 60mm Screw Extruder Barrels,GB Twin Screw Extruder Parts |
||

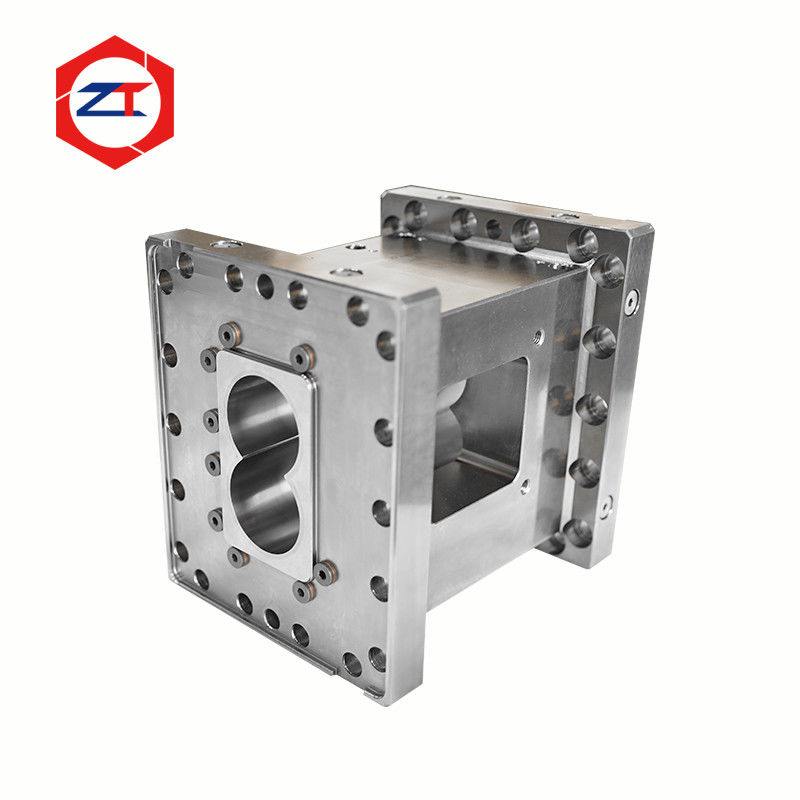

Twin Screw Extruder Parts Barrels Material Ni60 Based Center Distance 60mm
In addition to the widest barrel offering in the industry, ZHITIAN offers the following services to ensure you maximum uptime and process efficiency:
• barrel inspections/wear audits
• Barrel refurbishment
• Metallurgical analysis
• And many more.
Using machining center finishing, reasonable processing technology, advanced testing equipment, to ensure that the processing accuracy of each product.
Twin-screw extruder screw element:
- convenient interchangeability by agile combination.
- fulfill efficient self-cleaning, transmission, compounding, pressure-forming and etc.
- made of high speed tool steel W6Mo5Cr4V2, or anti-corrosion steel 38CrMoAlA by speed treatment.
The flexible modular principle is realized with screw barrel sections from the wide range of different designs possible. Fast, intensive and uniform heating of the screw barrel section is ensured by electrical heaters. The barrel sections are cooled with water by means of an internal bore system with bores arranged close to the inside barrel wall.
We can satisfy your different material needs:
According to appearance design,Closed Barrel,Feeder Barrel,Side Feeder Barrel,Venting Barrel,Combi Barrel.
According to the liner,With liner barrel,Without liner barrel.
According to Materical,
-For wear application:C liner;Cr26；Cr12MoV;W6Mo5Cr4V2;
-For corrosion application:38CrMoAla;Hac alloy;
-For wear and corrosion application:Nickel based alloy;316L,304;WR13,SAM26etc.
Through the understanding of customers,recommend the most valuable material.
Barrel Dimensions
|
Screw Barrel Specifications Table
|
||||
| NO. | Model | L*W*H(MM) | Hole Diameter/Φ(MM) | Center Distance/D(MM) |
| 1 | 20 | 132*115*105 | Φ23 | 18.4 |
| 2 | 30 | 120*135*115 | Φ30.6 | 26 |
| 3 | 35 | 140*140*120 | Φ36 | 30 |
| 4 | 36 | 150*160*140 | Φ36 | 30 |
| 5 | 40 | 160*175*145 | Φ41.6 | 34.5 |
| 6 | 50 | 190*190*150 | Φ51 | 42 |
| 7 | 52 | 210*200*155 | Φ52 | 43 |
| 8 | 53 | 220*210*160 | Φ53.3 | 48 |
| 9 | 58 | 240*220*175 | Φ58 | 48 |
| 10 | 60 | 240*210*170 | Φ60 | 52 |
| 11 | 65 | 240*210*170 | Φ63 | 52 |
| 12 | 75 | 290*260*200 | Φ71.8 | 60 |
| 13 | 85 | 320*280*215 | Φ81.9 | 67.8 |
| 14 | 92 | 360*310*240 | Φ92 | 78 |
| 15 | 95 | 360*310*240 | Φ94 | 78 |
| 16 | 110 | 420*330*240 | Φ109 | 91.5 |
| 17 | 125 | 500*390*290 | Φ125 | 98 |
| 18 | 135 | 520*440*340 | Φ134 | 110 |
Packaging
|
|
|
|
All ZT keep pay attention to every step of the details,We are looking forward to the forge ahead together with you!
|
||
