Place of Origin:
CHINA
Brand Name:
ZHITIAN
Model Number:
85
Contact Us
Video
Quick Details

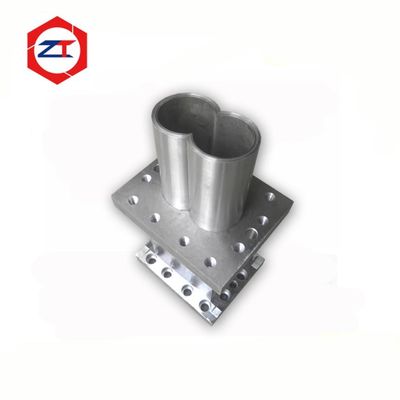

Product Name:85mm Screw Barrel Of Twin Screw Extruder Parts 45#+A101 Material For Plastic Pellet making Machine
Material: 45#+A101
Color: Metal
Packaging: Wooden Box
Lead Time: 30-60 days
Features:
1.From Baoshan Iron&Steel company,high quality,HRC 58-62.
2.Good hardness uniformity and polishing property,good machining properties.
3.The most used material in the market,low price,basically meet your requirements.
Product Description
We can satisfy your different material needs:
According to appearance design,Closed Barrel,Feeder Barrel,Side Feeder Barrel,Venting Barrel,Combi Barrel.
According to the liner,With liner barrel,Without liner barrel.
According to Materical,
-For wear application:C liner;Cr26；Cr12MoV;W6Mo5Cr4V2;
-For corrosion application:38CrMoAla;Hac alloy;
-For wear and corrosion application:Nickel based alloy;316L,304;WR13,SAM26etc.
Through the understanding of customers,recommend the most valuable material.
Barrel Dimensions
Screw Barrel Specifications Table
| ||||
| NO. | Model | L*W*H(MM) | Hole Diameter/Φ(MM) | Center Distance/D(MM) |
| 1 | 20 | 132*115*105 | Φ23 | 18.4 |
| 2 | 30 | 120*135*115 | Φ30.6 | 26 |
| 3 | 35 | 140*140*120 | Φ36 | 30 |
| 4 | 36 | 150*160*140 | Φ36 | 30 |
| 5 | 40 | 160*175*145 | Φ41.6 | 34.5 |
| 6 | 50 | 190*190*150 | Φ51 | 42 |
| 7 | 52 | 210*200*155 | Φ52 | 43 |
| 8 | 53 | 220*210*160 | Φ53.3 | 48 |
| 9 | 58 | 240*220*175 | Φ58 | 48 |
| 10 | 60 | 240*210*170 | Φ60 | 52 |
| 11 | 65 | 240*210*170 | Φ63 | 52 |
| 12 | 75 | 290*260*200 | Φ71.8 | 60 |
| 13 | 85 | 320*280*215 | Φ81.9 | 67.8 |
| 14 | 92 | 360*310*240 | Φ92 | 78 |
| 15 | 95 | 360*310*240 | Φ94 | 78 |
| 16 | 110 | 420*330*240 | Φ109 | 91.5 |
| 17 | 125 | 500*390*290 | Φ125 | 98 |
| 18 | 135 | 520*440*340 | Φ134 | 110 |
Production Process
| NO.1 |
NO.2 | |
| NO.3 |
NO.4 | |
| NO.5 |
FAQ
How long does it take to get my products since I paid for them?
---According to yout order quantity,we will give you a reasonable delivery date.
Can I get the warranty of one year for free?
---If you need the warranty,you should pay for it.If not,do not worry ,we have confidence in our products.
How is your after-sale service?
---You will get our help in time as long as you find something wrong about our produces.Believe us,you deserve the best.
Are yuo responsible for the assembly?
---We will provide this service at your requst.
