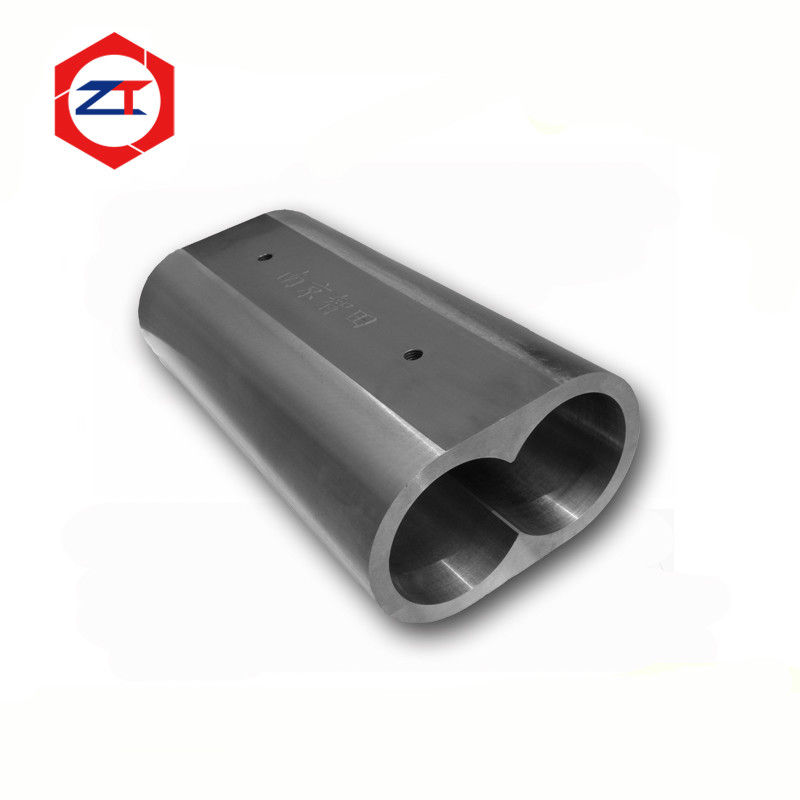

High Wear Resistance Twin Screw Barrel Liner for Co-Rotating Extruders

Product Details

Place of Origin: CHINA

Brand Name: ZHITIAN

Certification: ISO9001

Model Number: 36-95

Document: Screw Barrel & Elements.pdf

Payment & Shipping Terms

Minimum Order Quantity: 10

Price: Timely quotation

Packaging Details: Wooden Box

Delivery Time: 30-60 days

Payment Terms: T/T

Supply Ability: 500 Sets / Month

Get Best Price
Highlight:

double screw extruder machine parts

,

extrusion machine parts

,

Twin Screw Machine Barrel Overall Liner

Liner Material:
HIP Alloy / Tool Steel / Bimetallic Composite
Application:
Twin Screw Co-rotating Extruders For Compounding, Recycling
Inner Diameter Range:
15.6mm – 200mm
Hardness:
HRC 58–70 (Depending On Alloy Used)
Processing Method:
Precision CNC Turning + Heat Treatment
Wear Resistance:
Up To 5 Times Longer Life Than Standard Nitrided Steel
Corrosion Resistance:
Excellent Against Acidic Fillers And Glass Fiber
Compatibility:
Compatible With Coperion, Leistritz, JSW, Etc.
Liner Material:
HIP Alloy / Tool Steel / Bimetallic Composite
Application:
Twin Screw Co-rotating Extruders For Compounding, Recycling
Inner Diameter Range:
15.6mm – 200mm
Hardness:
HRC 58–70 (Depending On Alloy Used)
Processing Method:
Precision CNC Turning + Heat Treatment
Wear Resistance:
Up To 5 Times Longer Life Than Standard Nitrided Steel
Corrosion Resistance:
Excellent Against Acidic Fillers And Glass Fiber
Compatibility:
Compatible With Coperion, Leistritz, JSW, Etc.
High Wear Resistance Twin Screw Barrel Liner for Co-Rotating Extruders


Quick Details


Product Name:Silver Color Twin Screw Machine Barrel Overall Liner Extended Service Life

Material: Cr26/SAM26/x260

Color: Metal

Packaging: Wooden Box

Lead Time: 30-60 days


Product Description


Our twin screw barrel liners are designed to extend the working life of your extruder barrels by providing exceptional wear and corrosion resistance. Made from advanced materials such as HIP alloy, tool steel, or bimetal composites, these liners are ideal for demanding processing environments with abrasive or corrosive fillers, such as glass fiber, calcium carbonate, or flame retardants. Available for a wide range of extruder models—including Coperion, Leistritz, and others—our liners feature tight machining tolerances and customized inner diameters from 15.6mm to 200mm. Whether you're processing engineering plastics or recycling materials, our liners ensure long-lasting protection and reduced maintenance downtime.


We can satisfy your different material needs:

According to appearance design,Closed Barrel,Feeder Barrel,Side Feeder Barrel,Venting Barrel,Combi Barrel.

According to Materical,

-For wear application:C liner;Cr26;Cr12MoV;W6Mo5Cr4V2;

-For corrosion application:Nonliner;

-For wear and corrosion application:Nickel based alloy;WR13,SAM26etc.


Through the understanding of customers,recommend the most valuable material.


Liner Dimensions

High Wear Resistance Twin Screw Barrel Liner for Co-Rotating Extruders 0



Liner Specifications Table


NO. Model L*W*H(MM) Hole Diameter/Φ(MM) Center Distance/D(MM)
1 36 151*76*46 Φ36 30
2 40 161*88.5*54 Φ41.6 34.5
3 50 191*107*65

Φ51

42
4 52 211*107*64 Φ52 43
5 58(Standard) 233*124*76 Φ58 48
6 58(Lengthen) 241*124*76 Φ58 48
7 60 241*128*76 Φ60 52
8 65 241*128*76 Φ63 52
9 75 291*150*90 Φ71.8 60
10 85(82) 321*167.8*100 Φ81.9 67.8
11 92 361*186*108 Φ92 78
12 95 361*188*110 Φ94 78


ZTCr26


ZTCr26 is based on ultra high chromium alloy powder of high wear-resisting, corrosion resistance alloy, with special heat treatment process of the product.Through further refine crystal groups, large amount of various solid carbide distribution and uniform, wear resistance and comprehensive mechanical performance is great optimization, is a new generation of high-performance double screw extrusion machine accessories and preferred products.


ZTCr26 Chemical Composition

C Cr V Mo Si Mn Ni W Cu Ti
W-% 2.7 >25 1.1 1.1 0.5 0.5 0.5-0.8 1-1.2 1-1.2 0.5


Import powder metallurgy HIP overall liner

Powder metallurgical high-performance steel with homogenously distributed and fine-grained precipitated carbides.the outstanding properties are the high wear-and high corrosion resistance for simultaneously corrosive and abrasive applications.


ZTSAM 26/ZTX260 Chemical Composition

C Cr V Mo Si Mn Nb W Co Fe
W-% 2.7 26 2.9 1.1 0.6 0.5 1.5 / / Balance


Nickel based alloy(using HIP technology)

Excellent abrasion resistance alloy material,is a new generation of high-performance twin-screw extruder spare parts of the preferred products.Wear resistance is four times that of high chromium cast iron.


Nickel based Liner Chemical Composition

C Cr Si B Fe Ni
W-% 0.5-1.1 15-20 3.5-5.5 3-4 <5 65


Production Process


Workblank


According to your request,Customing workblank,Adopts the high hardness 45# steel and high quaily 38CrMoAla.


Rough Machining


Many sets of advanced processing equipment,shape of inner hole channel of rough machining peocessing.
To complete your request.


Finish Machining


Try the water cycle,after testing process for each working procedure.
Higher precision,only you.


Liner Inspection


High-end testing equipment and instruments,inspection,test center distance,appearance size,hole,etc.
Paper issued by the quality inspection report for your inspection.


Delivery


Standard export packing
To product antirust processing,and then use the paper package,bubble,fixed in the wooden case,after confirm the delivery.
