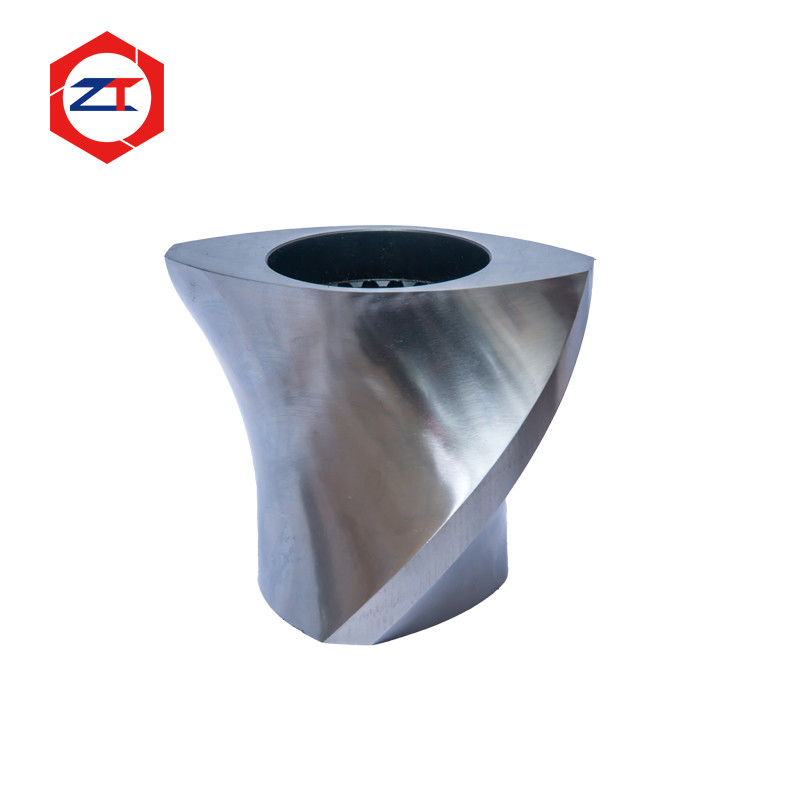

High Performance Plastic Machinery Twin Screw Extruder Corrion Resistance Extruder Screw Barrel Screw Element

Quick Details

Product Description

The extruder is a kind of equipment commonly used in the manufacture of plastic products. It heats and melts the plastic and extrudes it through the elements of the screw and screw structure, so that the molten plastic passes through the mold to form the desired shape. Threaded elements play an important role in extruders.
Threaded elements usually consist of one or more screws and threaded sleeves. The screw is the main driving element, which consists of threads and a shaft. The threaded sleeve is the shell of the threaded element, and the threads inside the threaded sleeve cooperate with the threads on the screw to form a spiral channel.
During extrusion, the screw rotates to push the molten plastic forward. When the molten plastic passes through the screw channel, the screw thread of the screw element will form a channel that gradually shrinks due to the gradual decrease of the pitch of the screw thread. This structure can realize uniform extrusion of plastic and increase extrusion pressure.
The design of threaded elements is usually determined by the desired product shape and properties. For example, if a plastic product needs to be manufactured with a specific thread shape, the thread shape of the threaded element will match it. Threaded elements can also be customized according to extruder specifications and requirements.
In general, the extruder building block screw element refers to the thread structure composed of multiple components, which plays the role of extruding the plastic melt into shape in the extruder. This design makes the threaded elements more flexible and can be adjusted and combined as needed to meet the extrusion requirements of different products.

We can satisfy your different material needs:

According to appearance design,

Convey Screw Segment,Mixing Screw Segment,Kneading Block&disk,Transition Screw Element,Deep groave Transfer Element,Screw Element for side feeder,1/2/3-flighted Screw Element,OEM Special Screw Element.

We offer a broader choice of materials:
For wear application:
Tool Steel : W6Mo5Cr4V2;
PM-HIP material : SAM10,SAM26,SAM39,CPM10V,CPM9V
For corrision application:
Nitrided Steel: 38CrMoAI;
PM-HIP material : SAM26,SAM39,CPM10V,CPM9V
For wear and corrision application:
PM-HIP material:SAM26,SAM39,CPM10V,CPM9V
Other materials:
Stainless Steel: 316L,C276 etc.
By working closely with customers in choosing optional materials,we can minimize wear and tear and associated costs.

Production Process

	NO.1   Workblank     Select high-quality raw materials
NO.2   Piecewise According to the drawing section length
	NO.3   Hit bottom hole Rough machining the bottom hole,and then pull spline
NO.4   Machining thread Professional high-end processing equipment,rough machining threads
	NO.5   Finish machining thread
NO.6   Threading grinding Further control of tolerance Length:-0.01mm-+0.01mm OD:-0.03mm-0mm Transition arc:-0.02mm-+0.02mm

Our Service

Packing&Delivery

Packing Details: According to your order quantity packaging,shipping wooden boxes,air carton.

Delivery Details: 5-40days after order.

1.Rust-proof oil processing, Prevent rust in transit.	2.Oiled paper packages, Prevent oil dry.	3.Bubble wrap package, Prevent collosions.
4.Special foam packaging.	5.Packing	6.Sealing

FAQ

How long does it take to get my products since I paid for them?

---According to yout order quantity,we will give you a reasonable delivery date.

Can I get the warranty of one year for free?

---If you need the warranty,you should pay for it.If not,do not worry ,we have confidence in our products.

How is your after-sale service?

---You will get our help in time as long as you find something wrong about our produces.Believe us,you deserve the best.

Are yuo responsible for the assembly?

---We will provide this service at your requst.
