SHTD25 Mini Extruder Machine Parts Torque Grade 10.37 - 11.21T/A3 For Lab

SHTD25 Mini Extruder Machine Parts Torque Grade 10.37 - 11.21T/A3 For Lab

    • SHTD25 Mini Extruder Machine Parts Torque Grade 10.37 - 11.21T/A3 For Lab
    • SHTD25 Mini Extruder Machine Parts Torque Grade 10.37 - 11.21T/A3 For Lab
  • SHTD25 Mini Extruder Machine Parts Torque Grade 10.37 - 11.21T/A3 For Lab

    Product Details:

    Place of Origin: CHINA
    Brand Name: ZHITIAN
    Model Number: SHTD25

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: consult with
    Packaging Details: Wooden Box
    Delivery Time: 30-60 days
    Payment Terms: L/C, T/T
    Supply Ability: 50 Pieces/Month
    Contact Now
    Detailed Product Description
    Material: Cast Iron Color: Red Or Blue
    RPM Speed: 600-900r/min Power: 15-22kw
    Torque: 110-119N.M Application: Pelletzing Machine
    Packaging: Wooden Box L*W*H: 849*360*375MM
    Weight: 280KG Torque Grade: 10.37-11.21T/A3
    High Light:

    twin screw extruder parts

    ,

    two screw extruder parts

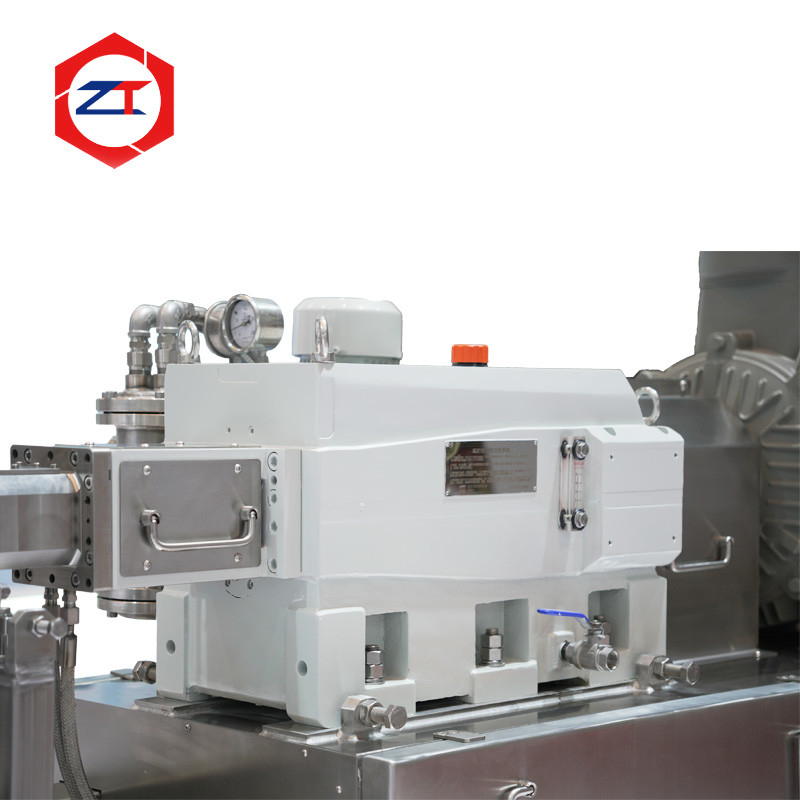

    SHTD25 Mini Extruder Machine Parts Gearbox For Lab

    Adopting latest standard ISO1328,the precision of cylindrical gear of spherical involute, and combining our long term experience and specialty of twin-screw extruders, SHT gearboxes are meticulously designed with top advanced designing ideas in the world for co-orientated rotating twin-screw extruders, with entirely independent Intellectual Property Rights.
    The gears are made of carburizing steel of high-strength alloy of good quality by carburizing and quenching for teeth, of which all the gear grinding processes are finished by imported gear grinding machines. Gear parameters are optimized and specially designed for the characteristics of twin-screw extruders, reducing stress concentration on root of gear and improving gear surface conditions. We have improved gear intension of flexural fatigue, fatigue strength and ratio of wide diameter. We have also adopted the latest designing idea and technology of heating treatment for the structure of gears, thereby ensured gears from uniformity of precision and strength.

    Key Features

    ---Solid and optimized structure minimizes vibration.
    ---High torque and high output speed rate design.
    ---Precision gear grinding to keep operation noise very low.
    ---Forced lubrication and cooling filter system to ensure excellent heat dissipation.
    ---All bearings are sourced from global recognized brands.



    SHTD25 Mini Extruder Machine Parts Torque Grade 10.37 - 11.21T/A3 For Lab 0



    SHTD25 Gearbox Power And Torque Table



    Model RPM(r/min) Power(kw) Torque(N.M) Torque Grade(T/A3)
    SHTD25 600 15 119 11.21
    800 18.5 110 10.37
    900 22 117 10.96


    SHTD25 Mini Extruder Machine Parts Torque Grade 10.37 - 11.21T/A3 For Lab 1

    Housing Dimensions
    Model AA A B1 B2 B3 H h1 h2 m1 m2 m3 m4 m5 C e1 e2 e3 E F n-d3 L

    SHTD

    25

    22 550 35 290 360 375 210 210 244 314 202 218 65 30 45 80 80 68 112 6-Φ17 849

    Input shaft Out shaft Coupling Weight kg
    d1 d1(300) I L1 d2 L2 L6 TA TB L3 L4 L5
    Φ30   80 155 1M*13Z*45° 80 30 196 140 571 20 181 280KG


    Production Process



    NO.1

    Workblank

    Select high quality and hardness of ductile iron material.



    NO.2

    Rough Machining

    Mang sets of rough machining equipment,such as Gantry-type milling,Radial drill,etc.Realized the blank shape and the inner hole of rough maching.



    NO.3

    Finish Machining

    Many sets of finishing equipment,such as CNC Grinding Machine,NC Boring Machine,etc.Further processing of each working procedure,the accuracy is higher,only you.



    NO.4

    Gearbox Inspection

    High-end testing equipment and instruments,processional inspection team,the gearbox shape,center distance,inner hole and into the next procedure,after inspection and correct.



    NO.5

    Assemble

    Strong assembly and R&D team,the parts will be assembled according to the drawing,step by step audit,by running test after product finished.



    NO.6

    Delivery

    Export standard packing,packaging,use at the bottom of the fixed plate,ensure that the peoduct does not shift in transit.



    FAQ

    How long does it take to get my products since I paid for them?
    ---According to yout order quantity,we will give you a reasonable delivery date.

    Can I get the warranty of one year for free?
    ---If you need the warranty,you should pay for it.If not,do not worry ,we have confidence in our products.

    How is your after-sale service?
    ---You will get our help in time as long as you find something wrong about our produces.Believe us,you deserve the best.

    What parts does the product contain?
    ---Gearbox baby,Coupling,Spline,External oil circulation system,Operating instructuins and so on.
