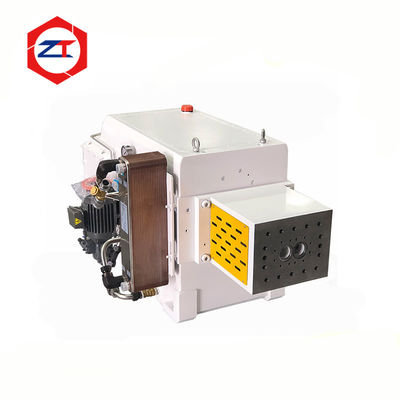

SHTD75N High Torque Gearbox For Pelletzing Machine
Key Features
---Solid and optimized structure minimizes vibration.
---High torque and high output speed rate design.
---Precision gear grinding to keep operation noise very low.
---Forced lubrication and cooling filter system to ensure excellent heat dissipation.
---All bearings are sourced from global recognized brands.
SHTDN Twin Screw Extruder Gearbox Parameters
| SHTDN Gearbox Power&Torque Table | ||||||||
| Model | CD(MM) | Torque Grade(T/A3) | RPM 300r/min | RPM 400r/min | RPM 500r/min | RPM 600r/min | RPM 800r/min | RPM 900r/min |
| SHTD20N | 18 | <13 | --- | --- | --- | 7.5kw | 11kw | --- |
| SHTD25N | 22 | <13 | --- | --- | 11kw | 15kw | 18.5kw | 22kw |
| SHTD30N | 26 | <13 | --- | --- | --- | 22kw | 30kw | 37kw |
| SHTD35N | 30 | <13 | 18.5kw | 22kw | 30kw | 37kw | 50kw | 60kw |
| SHTD40N | 34.5 | <13 | 30kw | 45kw | 55kw | 65kw | 90kw | 90kw |
| SHTD50N | 42 | <13 | 55kw | 75kw | 90kw | 110kw | 132kw | 160kw |
| SHTD52N | 43 | <13 | 55kw | 75kw | 90kw | 110kw | 132kw | 160kw |
| SHTD58N | 48 | <13 | 90kw | 110kw | 132kw | 160kw | 220kw | 250kw |
| SHTD65N | 52 | <13 | 110kw | 132kw | 160kw | 220kw | 280kw | 315kw |
| SHTD75N | 60 | <13 | 160kw | 220kw | 250kw | 315kw | 450kw | 500kw |
| SHTD85N | 67.8 | <13 | 220kw | 315kw | 400kw | 500kw | 600kw | 650kw |
| SHTD95N | 78 | <13 | 350kw | 450kw | 550kw | 650kw | 900kw | 1000kw |
| SHTD110N | 92 | <13 | 560kw | 710kw | 900kw | 1000kw | --- | --- |
| SHTD125N | 100 | <13 | 800kw | 1000kw | 1250kw | 1400kw | --- | --- |
| SHTD135N | 110 | <13 | 1000kw | 1400kw | 1600kw | 2000kw | --- | --- |
| SHTD150N | 120 | <13 | 1320kw | 1750kw | --- | --- | --- | --- |
Production Process
|
NO.1 Workblank
Select high quality and hardness of ductile iron material. |
|
|
NO.2 Rough Machining
Mang sets of rough machining equipment,such as Gantry-type milling,Radial drill,etc.Realized the blank shape and the inner hole of rough maching. |
|
|
NO.3 Finish Machining
Many sets of finishing equipment,such as CNC Grinding Machine,NC Boring Machine,etc.Further processing of each working procedure,the accuracy is higher,only you. |
|
|
NO.4 Gearbox Inspection
High-end testing equipment and instruments,processional inspection team,the gearbox shape,center distance,inner hole and into the next procedure,after inspection and correct. |
|
|
NO.5 Assemble |
|
|
NO.6
Delivery
Export standard packing,packaging,use at the bottom of the fixed plate,ensure that the peoduct does not shift in transit. |
|
FAQ
How long does it take to get my products since I paid for them?
---According to yout order quantity,we will give you a reasonable delivery date.
Can I get the warranty of one year for free?
---If you need the warranty,you should pay for it.If not,do not worry ,we have confidence in our products.
How is your after-sale service?
---You will get our help in time as long as you find something wrong about our produces.Believe us,you deserve the best.
What machine does the product apply to?
---Pellet Machine.
