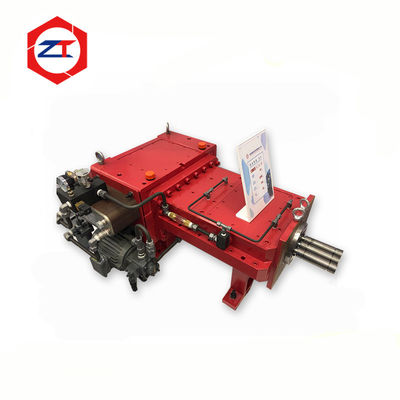

6.1 Torque Triple Screw Extruder Gearbox 160KW 600 RPM

6.1 Torque Triple Screw Extruder Gearbox 160KW 600 RPM

Triple Screw Extruder Gearbox 160KW

6.1 Torque Triple Screw Extruder Gearbox

Screw Extruder Gearbox 600RPM

Place of Origin:

CHINA

Brand Name:

ZHITIAN

Certification:

ISO9001

Model Number:

SANB65

Contact Us

Request A Quote
Product Details
Name:
Triple Screw Extruder Parts
Feature:
Simple Manufacture
Material:
Cast Iron
Color:
White
Power:
160KW
Torque Grade:
6.1 Torque
Application:
Extruder Machine
Packaging:
Wooden Box
Experience:
20 Years
Center Distance:
52mm
Payment & Shipping Terms
Minimum Order Quantity
Negotiation
Price
Negotiation
Packaging Details
Wooden Box
Delivery Time
30-60 days
Payment Terms
L/C, T/T
Supply Ability
50 Pieces/Month
Product Description

SANB65 Triple Screw Gearbox High Capacity High RPM For Triple/Three Screw Extruder Machine





SANB Screw Extruder Gearbox Introduction



Gearbox adopting latest standard ISO1328,the precision of cylindrical gear of spherical involute, and combining our long term experience and specialty of extruder, SANB gearboxes are meticulously designed with top advanced designing ideas in the world for co-orientated rotating extruder, with entirely independent Intellectual Property Rights.
The gears are made of carburizing steel of high-strength alloy of good quality by carburizing and quenching for teeth, of which all the gear grinding processes are finished by imported gear grinding machines. Gear parameters are optimized and specially designed for the characteristics of extruder, reducing stress concentration on root of gear and improving gear surface conditions. We have improved gear intension of flexural fatigue, fatigue strength and ratio of wide diameter. We have also adopted the latest designing idea and technology of heating treatment for the structure of gears, thereby ensured gears from uniformity of precision and strength.





Features:

----Double drive design enables the B axis to be driven by two gears without increasing the tooth width.

----Optimal structure and complex assembly lead to the cost rise.

----All bearings are sourced from global recognized brands,so output torque is more stable.

---Streamlined design,the end of gearbox cover can be opened,easy to install and replace.





SANB Extruder Gearbox Parameters



SANB65 Gearbox Power&Torque Table
Model RPM(r/min) Power(kw) Torque Grade(T/A3) CD(mm)
SANB65 600 160 6.1 52



Production Process







6.1 Torque Triple Screw Extruder Gearbox 160KW 600 RPM 0



NO.1

Workblank



Select high quality and hardness of ductile iron material.



NO.2

Rough Machining



Many sets of rough machining equipment,such as Gantry-type milling,Radial drill,etc.Realized the blank shape and the inner hole of rough maching.

6.1 Torque Triple Screw Extruder Gearbox 160KW 600 RPM 1
6.1 Torque Triple Screw Extruder Gearbox 160KW 600 RPM 2



NO.3

Finish Machining



Many sets of finishing equipment,such as CNC Grinding Machine,NC Boring Machine,etc.Further processing of each working procedure,the accuracy is higher,only you.



NO.4

Gearbox Inspection



High-end testing equipment and instruments,processional inspection team,the gearbox shape,center distance,inner hole and into the next procedure,after inspection and correct.

6.1 Torque Triple Screw Extruder Gearbox 160KW 600 RPM 3
6.1 Torque Triple Screw Extruder Gearbox 160KW 600 RPM 4



NO.5

Assemble



Strong assembly and R&D team,the parts will be assembled according to the drawing,step by step audit,by running test after product finished.



NO.6



Delivery



Export standard packing,packaging,use at the bottom of the fixed plate,ensure that the peoduct does not shift in transit.

6.1 Torque Triple Screw Extruder Gearbox 160KW 600 RPM 5



FAQ



How long does it take to get my products since I paid for them?

---According to yout order quantity,we will give you a reasonable delivery date.



Can I get the warranty of one year for free?

---If you need the warranty,you should pay for it.If not,do not worry ,we have confidence in our products.



How is your after-sale service?

---You will get our help in time as long as you find something wrong about our produces.Believe us,you deserve the best.



How long will your product last?

---I am sorry that I can not accurately answer your question,which is quite different from your operation time,materials and materials.
